2MP 4-in-1 HD-TVI/AHD/HD-CVI/960H Outdoor IR Dome HD Camera Varifocal Lens 2.8-12mm
Model: HD4-2DO2812
- 1/2.8" 2MP Starvis CMOS Sensor
- 4 in 1 (HD-TVI/AHD/HD-CVI, 960H)
- IR Cut, WDR, 3DNR, UTC OSD Menu
- 2.8-12mm VF Manual Lens
- IR Leds14µ x 24PCS
- IR Distance 30m
- IP66, Metal, DC12V
|
Video Output |
HD-TVI/AHD/ HD-CVI 4-in-1 |
|
Image Sensor |
1/2.8” SONY 2.1MP Starvis CMOS Sensor |
|
Image Resolution |
2MP, 1080P/960H |
|
Effective Pixels |
1920 x 1080 |
|
Signal System |
NTSC/ PAL |
|
Electronic Shutter |
1/25s ~ 1/50,000s, 1/30s ~ 1/60,000s |
|
S/N Ratio |
≥50Db |
|
Scanning System |
Progressive Scan |
|
Lens |
2.8 – 12mm, manual |
|
Pixels |
2 MP Pixels |
|
Infrared LEDs |
14µ x 24 pcs. |
|
Infrared Distance |
30 m |
|
IR Status |
IR on: under 10 Lux, CDS auto control |
|
Day/ Night |
Yes |
|
OSD Menu Language |
Yes |
|
White Balance |
Auto/ Manual |
|
Gain Control |
Auto |
|
Noise Reduction |
3DNR |
|
Picture Adjustment |
Yes |
|
WDR |
Yes |
|
OSD Support |
Yes |
|
Up the Coax (UTC) |
Yes |
|
GENERAL |
|
|
Housing |
Metal |
|
IP Rating |
IP66 |
|
IR Cut Filter |
Yes |
|
Temperature |
Operation: -10°C ~ 50°C, Storage: -20°C ~ 60°C, Humidity 95% Max |
|
Power Source |
DC12V ± 10%, 800mA |
|
Dimensions (mm) |
Ø120 x 98 |
|
Weight |
800g |

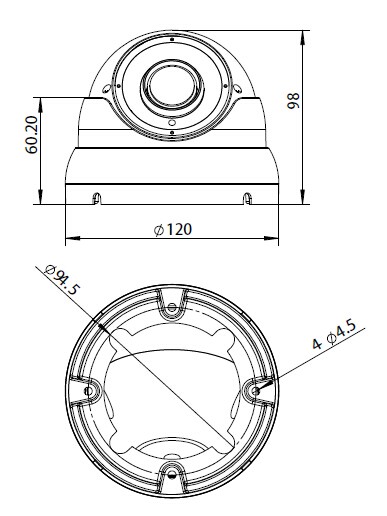

Dimensions
