4 Channel Analog HD Video Transceiver MS-TTP414HD
Model: MS-TTP414HD
- 4 Channel UTP Video Transceiver, send 4 HD camera signal over one CAT5e/CAT6 cable.
- Sends HD-CVI, AHD signal up to 300M over UTP cable.
- Sends HD-TVI signal up to 200M over UTP cable.
- Passive, no power required.
- Eliminate Coaxial Cable.
- Choice of RJ45 or push pin terminal inputs/outputs.
- Works with Active Transmitter MS-TTA111HDT, MS-TTA111TVIT for extra long distance transmission.
- Built in ESD, EFT (impulse noise) and transient protection.

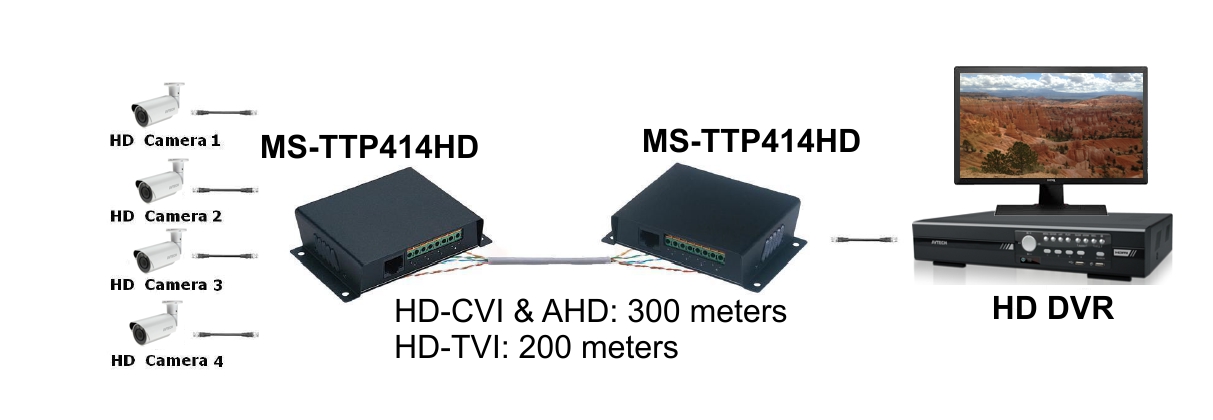

Installation View
| Item No. | MS-TTP414HD |
| Video Input / Output | BNC x 4 (1Vp-p, 75 Ohm) |
| RJ45 Output | 8 Pin terminal (100 Ohm) / RJ45 |
| Recommended Cable | CAT5e / CAT6 UTP |
| Bandwidth | 50Hz ~ 60 MHz (-3dB) |
| Transmission Distance |
HD-CVI / AHD: 300 meters HD-TVI: 200 meters |
| ESD Protection | 30 KV(Air), 15 KV (Contact); IEC 61000-4-2 compliant |
| EFT Protection | 40A (5/50ns); IEC 61000-4-4 compliant |
| Lightning Protection | 2A (8/20µs); IEC 61000-4-5 compliant |
| Surge Protection Attack time | < 1nS |
| Environmental Specifications |
Operation Temperature: 0ºC to 55ºC Storage Temperature: -20ºC to 85ºC Humidity: up to 95% |
| Dimensions (mm) | 110 x 80.6 x 26.3 |
| Weight (g) | 195 |

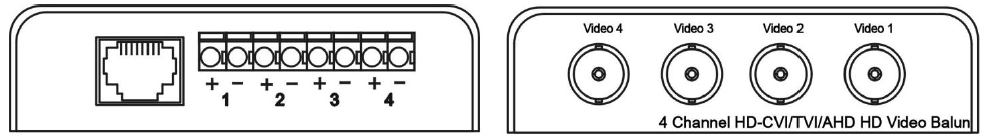

Panel View
