HD-CVI/TVI/AHD Surge Protector MS-SP009
Model: MS-SP009
- Provide protection for analog HD-CVI, HD-TVI, AHD camera,DVR devices.
- BNC male to BNC female.
- Comply with IEC 61000-4-5.
- Built in EFT (impulse noise) , lightning protection.

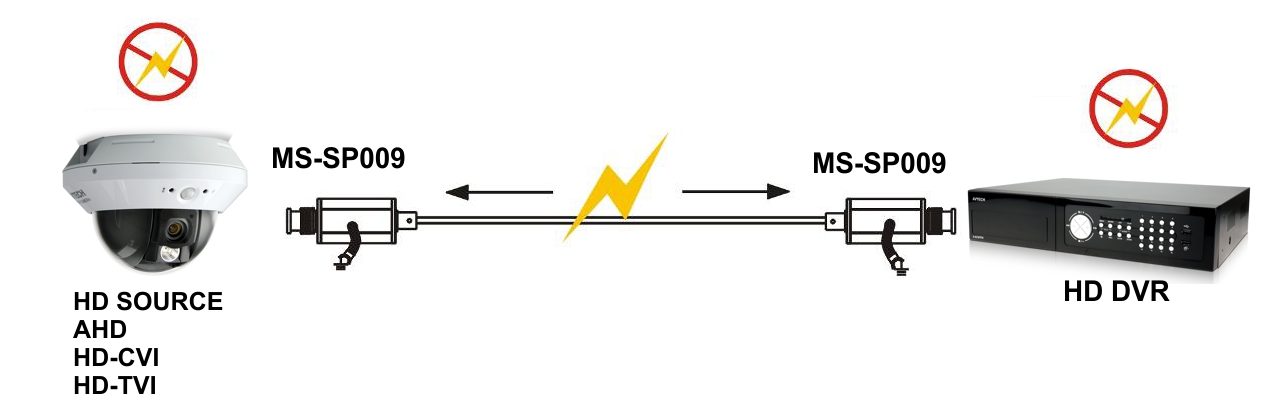

Installation View
|
ITEM NO |
MS-SP009 |
|
Input and output interface |
BNC (Male) x 1, BNC (Female) x 1 |
|
Surge Protection Attack Time |
< 1nS |
|
Starting voltage surge |
7V |
|
Minimum Breakdown Voltage |
6V |
|
Maximum Clamping Voltage |
25 V |
|
Reference Standard |
IEC 61000-4-5 |
|
Signal insertion loss |
0.9db @ 50Mb/s |
|
Maximum discharge current |
2 KA ( MAX ) |
|
Environmental Specifications |
Operation Temperature: 0ºC to 55ºC, Storage Temperature: -20 ºC to 85ºC, Humidity: up to 95% |
|
Dimensions (mm) |
79.3 x 25.4 x 25.4 |
|
Weight |
75 g |
