HD-CVI, HD-TVI, and AHD 1 In 2 Out Video Distributor MS-CD102HD
Model: MS-CD102HD
- 1 input 2 output HD video distributor.
- Input cable distance: 720p 500M(Max),1080p: 200M (Max)
- Output cable distance 100M (Max)

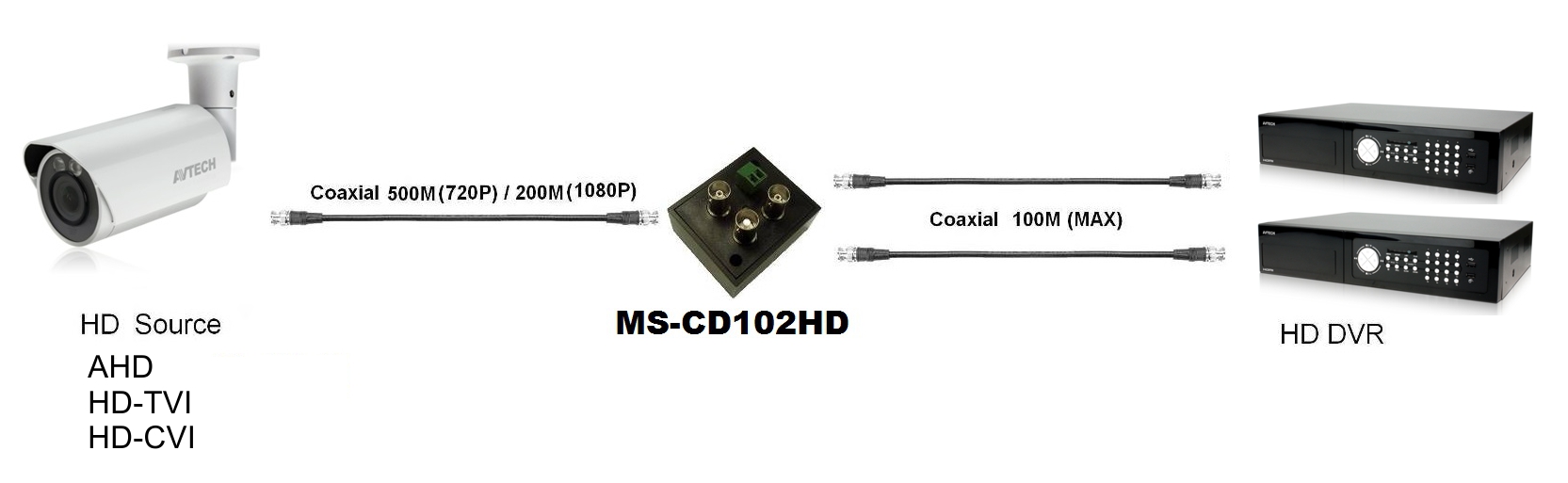

Installation View
|
ITEM NO. |
MS-CD102HD |
|
Video Input Channel |
BNC x 1 (0.8~1.2Vp-p, 75 Ohms) |
|
Video Output Channel |
BNC x 2 (1Vp-p (Standard), 75 Ohms) |
|
Video Bandwidth |
350 MHz -3dB |
|
Power Supply |
DC12V 500mA |
|
Power Consumption |
160mA |
|
Environmental Specifications |
Operation Temperature: 0ºC to 55ºC, Storage Temperature: -20ºC to 85ºC, Humidity: up to 95% |
|
Dimensions (mm) |
57.8 x 49.2 x 41.7 |
|
Weight (g) |
70 |

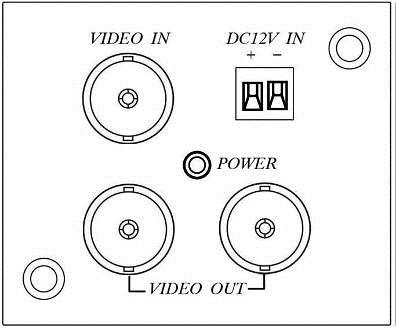

Panel View
.jpg)
