Digital Auto Gain 4 Channel Active Receiver MS-TTA414VRA
Model: MS-TTA414VRA
- 4 Port UTP active auto gain receiver.
- Use with passive transmitter to send video signal up to 1.5KM over UTP cable.
- Use with active transmitter MS-TTA111VT to send video signal up to 2.0KM over UTP cable.
- Dual control option for optimum video quality: Auto gain or manual adjustment.
- Auto gain control without any adjustment.
- Manual control: equalizer and brightness adjustment.
- Built in transient protection and grounding lifting.
- Perfect for high resolution TVL camera.
Installation View

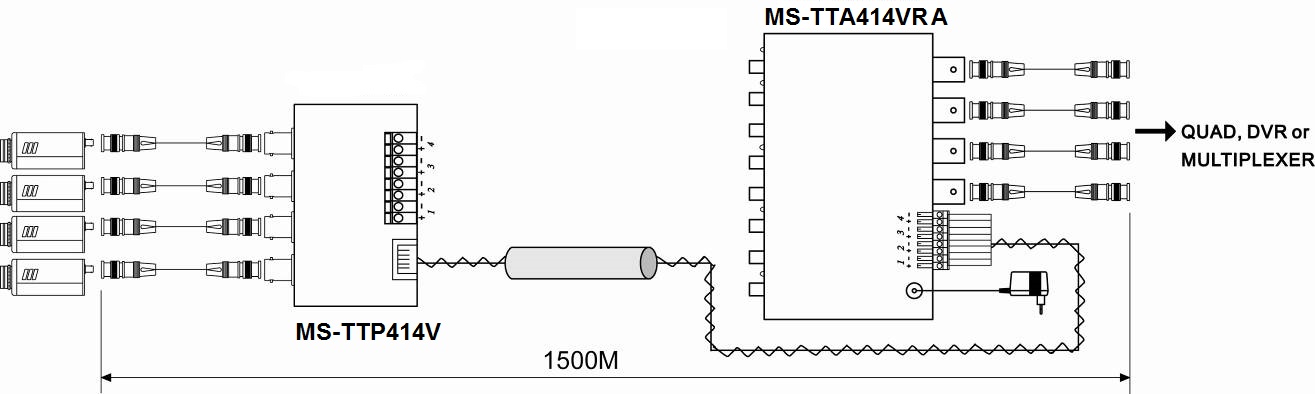

- With Passive Transmitter
-

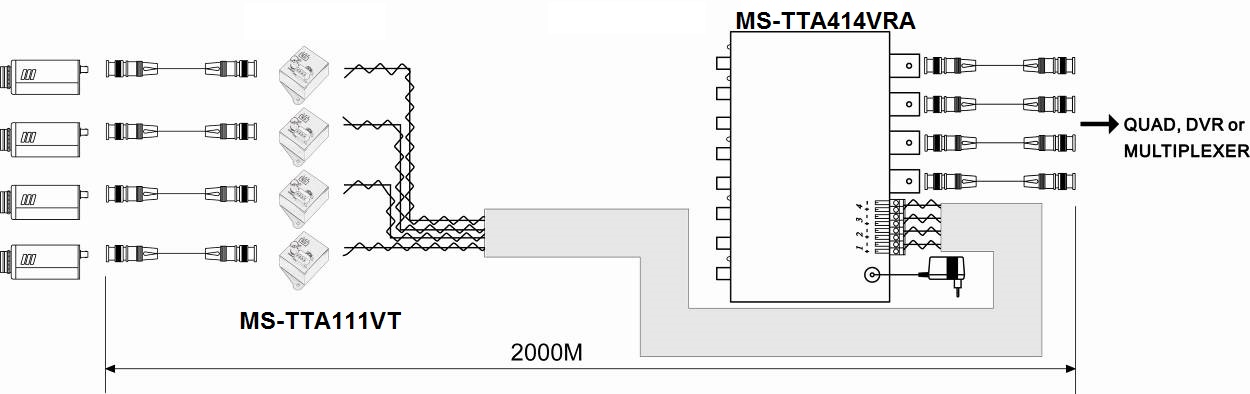

With Active Transmiter
|
ITEM NO. |
MS-TTA414VRA |
|
Video Format |
NTSC / PAL |
|
Video Input |
8 pin terminal block ×1 (100 Ω, 1.4 Vp-p Max) |
|
Video Output |
BNC × 4 (75 Ω, 1 Vp-p) |
|
EQ/ Brightness Switch |
Adjustable Trimmer (VR) x 8 |
|
Power Supply |
12V DC 1000mA Regulated (External) |
|
Power Consumption |
250mA (Max) |
|
Temperature |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95% |
|
Dimensions (mm) |
125 × 105 × 30 |
|
Weight (g) |
340 |

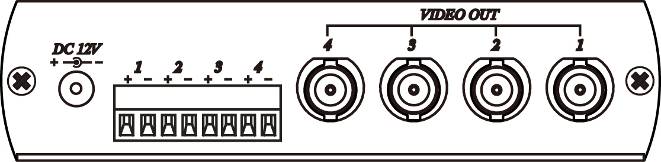

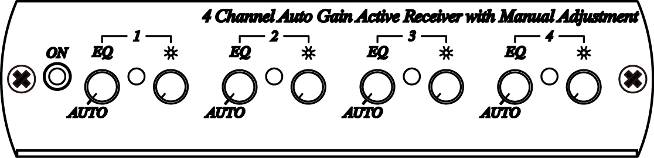

Front and Back Panel View
