HD-CVI, HD-TVI, and AHD Video Balun with Pigtail MS-TTP111HDL
Model: MS-TTP111HDL
- Send HD-CVI, HD-TVI, AHD signal 720p at 300M, 1080p at 200M over UTP cable.
- BNC male to screw terminal with 10cm mini coax cable for easy connection.
- Compact and mini size, could mount multiple units behind multiplexer, Quad, DVR, ... etc
- Passive, no power required.
- Eliminate coaxial cable.
- Works with Active transmitters MS-TTA111HDT, Active receiver MS-TTA111HDR for extra long distance transmission.
Installation View
|
ITEM NO. |
MS-TTP111HDL |
|
Video Input / Output Terminals |
BNC MALE (75Ω、1V p-p) x 1 TERMINAL BLOCK |
|
Bandwidth |
50Hz ~ 47MHz (-3dB) |
|
Transmission Distance |
720p: 300M (Max) 1080p: 200M (Max) |
|
Temperature |
Operation: 0 to 55ºC, Storage: -20 to 85ºC, Humidity: up to 95% |
|
Dimensions (mm) |
14.5 × 15.5 × 145, include 100mm mini coax cable |
|
Weight (g) |
25 |

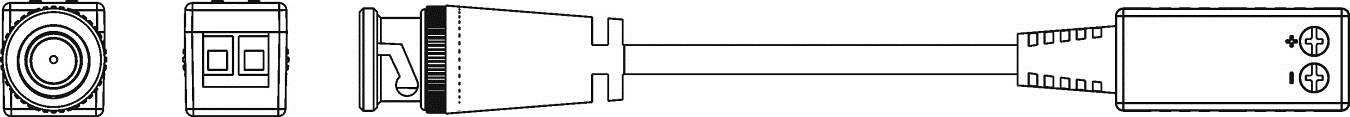

Panel View
