5 Port High Power PoE Switch MS-IP06H
Model: MS-IP06H
- PoE Port Power IEEE 802.3at Standard (1-Port 30W/600mA)
- 4-Port 10/100/1000Mbps with embedded PoE Injector
- 1-Port 10/100/1000Mbps for connecting to LAN
- Auto-sensing for detecting PoE or non-PoE devices
- Compatible IEEE 802.3af PoE standard

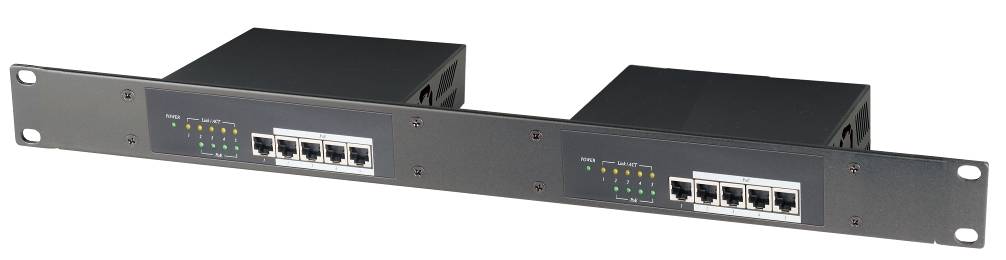

- 2 units install at MS-TPN002-IP rack mounting become 8 ports Switch
- Internal power supply
- Option Model: MS-TPN002-IP 1U 19” Rack Mounting Panel
|
ITEM NO. |
MS-IP06H |
|
Input/Output Connector |
RJ-45 x 5 |
|
Data Link |
Pins 1, 2 / 3, 6 / 4, 5 / 7, 8 |
|
Power LinK |
Pins 1, 2 / 3, 6 (End-Span) |
|
LED Indicator |
Power(Green), 10/100/1000/Act(Yellow), PoE(Green) |
|
PoE Port Power |
IEEE 802.3at Standard (1-Port 30W/600mA) |
|
Power Supply |
DC 54V 120W 2.22A |
|
Power Consumption |
Non-load 2.6W (48mA)，4port 4.1W (76mA)@10/100Mbps，4port 6.3W (116mA)@1000Mbps |
|
Temperature |
Operation：0 to 55°C, Storage：-20 to 85°C, Humidity：Up to 95% |
|
Dimensions |
187 x 136.6 x 42 (mm) |
|
Weight |
860 (g) |

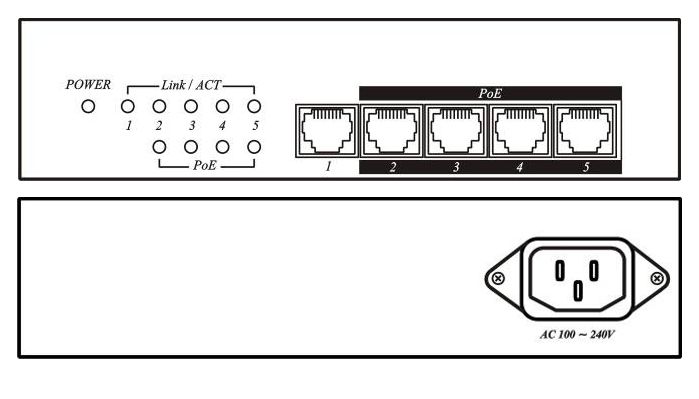

Panel View
