960H over UTP Cable Transmission 1.2KM MS-TTA111VEA-960H
Model: MS-TTA111VEA-960H
- To send 960H camera video signal over twisted pair cable.
- Eliminate use of coaxial cable.
- Package includes: MS-TTP111VE Passive Video Transmitter + MS-TTA111VHA Digital Auto Gain
- Active Receiver with power adapter.
- MS-TTP111VE is passive type, no power required.MS-
- TTP111VE compact size for easy installation at camera side.
- MS-TTA111VHA-960H design for 960H video auto gain receiver built in two mode auto gain control.
- MS-TTA111VHA-960H auto gain receiver built in transient protection and grounding lifting.
Installation View
|
ITEM NO. |
MS-TTP111VE |
|
Video Input (BNC Connector) |
1 (1V p-p, 75 Ohms) |
|
Cable |
Twisted Pair CAT 5 |
|
RJ-45 Output |
Terminal |
|
Temperature |
Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95% |
|
Dimensions (mm) |
14.5 × 49.5 × 15.5 |
|
Weight (g) |
18 |
Panel View
|
ITEM NO. |
MS-TTA111VHA-960H |
|
Video Standard |
NTSC / PAL |
|
Video Input |
Terminal Block / 100Ω / 1.4 Vp-p Max |
|
Video Output |
BNC / 75Ω / 1 Vp-p |
|
Link Cable |
CAT.5 (24 AWG) |
|
Power Consumption |
100mA |
|
Power Supply |
DC 12V 500mA |
|
Temperature |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95% |
|
Dimensions (mm) |
43.2 × 74 × 45.2 |
|
Weight (g) |
50 |

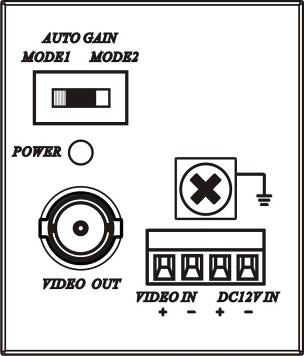

Panel View
