10Amp 8 Port DC5V Regulated Power Supply in 1U Rack Mounting Panel MS-PR1008-5R
Model: MS-PR1008-5R
- 10Amp 8 Port DC5V Regulated Power Supply in 1U Rack Mounting Panel
- Power input of AC120V/230V to DC5V Switching regulated output.
- Each port output current 2 Amp (Max).
- Built in “no fuse breaker” to avoid current overload.
- Built in PTC (positive temperature coefficient) for short protection and auto rework on each port.

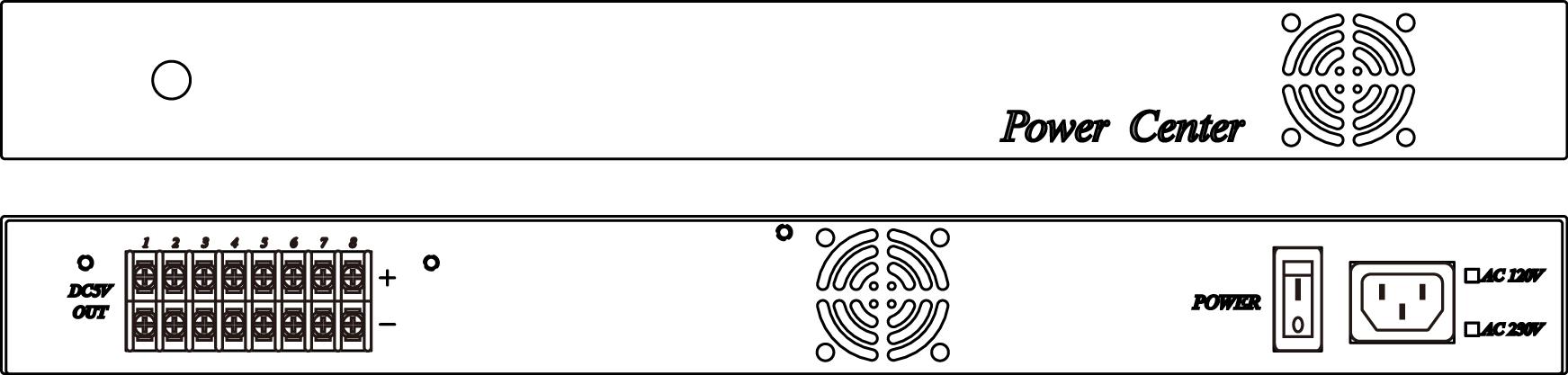

Front and Back Panel View
|
ITEM NO. |
MS-PR1008-5R |
|
Port |
8 |
|
Output Voltage |
DC5V (Regulated) |
|
Output Current |
0.5AMP/ Port |
|
Output Trip Current |
2A / Port |
|
Short Cut Time |
0.2 Sec/ Port |
|
Cut Current / Time |
2.5A/ 4Sec |
|
Reset able Output |
AUTO |
|
Reset able Output Time |
1 Sec (Min) |
|
Total Output Current |
10 Amp (Max) |
|
Dimensions (mm) |
437×170×44 1U height |
|
Weight (g) |
2500 |
|
Storage Temperature |
-30℃~70℃ |
|
Operation Temperature |
-10℃~45℃ |
