HD-TVI CCTV 1080P Motorized-Pan IR Dome Camera AVT503SA

Model: AVT503SA

  • 1/2.8” CMOS Sensor with 1080P video output
  • With motorized 316-degree pan, the camera can achieve a wide range of view, giving users more comprehensive control over the monitored site

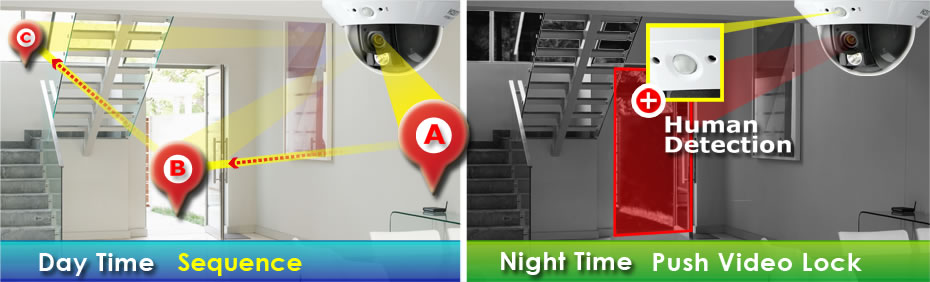

  • Supports sequence control, Push Video, and Push Video Lock via the mobile APP of EagleEyes.
  • Sequence setup with up to 16 preset points for area patrol
  • External alarm I/O device connection
  • WDR to increase image recognizability in overexposure and dark areas
  • Solid Light series featuring better overexposure prevention (Advanced Smart Light Control), automatic adjustment of image brightness, and longer lifetime of LEDs
  • IR effective distance up to 15 meters for 24-hour surveillance
  • Camera parameters adjustable when used with AVTECH HD CCTV DVR

Pick-up Element 1/ 2.8” SONY CMOS image sensor
Number of Pixels 1936(H) x 1096(V)
Video Frame Rate 1080P@30fps / 1080P@25fps
Min. Illumination 0.1 Lux / F1.8, 0 Lux (IR LED ON)
S/N Ratio More than 48dB (AGC OFF)
Shutter Speed 1/10,000 ~ 1/7.5 (Slow shutter)
Lens f3.6mm / F1.8
Lens Angle 87° (Horizontal) / 46° (Vertical) / 104° (Diagonal)
IR LED 1 unit
IR Effective Distance Up to 15 meters
PIR Sensor Yes
IR Shift Yes
IRIS Mode AES
White Balance ATW
AGC Auto
WDR YES (120dB)
External alarm I/O YES (1 input / 1 output)
Operating Temperature 0ºC ~ 40ºC
Power Source (±10%) DC12V / 1A

* The specifications are subject to change without notice.
