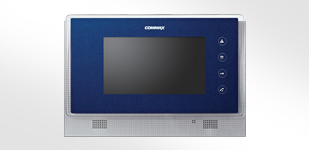

7 Inch Color Handsfree Monitor CDV-70U

Model: CDV-70U

  • 7 inch TFT LCD screen
  • Video talk and door lock release enable (both individual and public entrance)
  • Support 2 Monitor, 2 Camera and 2 Interphones
  • PAL/NTSC convertible
  • Expandable up to 2 monitors and 2 door cameras
  • iF DESIGN AWARDiF DESIGN AWARD

    A modern design with curves, a delicate blue light, and touch buttons are applied to create an emotional space.

  • SMART BLUESMART BLUE

    The distinguished smart blue color of COMMAX adds a premium class to the product.

  • THE WORLD’S FIRSTTHE WORLD’S FIRST

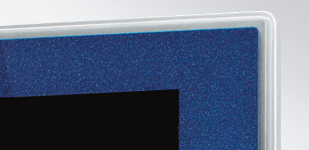

    A vivid color display with tempered glass application provides a clear and water resistant surface with AF(Anti-finger printing) feature.



MODEL CDV-70U
Wiring
  • Door Camera: 4 wires (polarity)
  • Interphone: 4 wires (polarity)
Rating Voltage 100V - 240V~, 50/60Hz (Free Voltage)
Power Consumption
  • On Stand-by: 3.9W
  • On Talk: 16W
Transmission Way HANDS FREE (Voice Switch Circuit)
Monitor 7" TFT - DIGITAL LCD
Ringtone
  • Door: electronic chime (Sol Mi Do)
  • Interphone: Beep
Display
  • Monitoring: 30 ± 5 seconds
  • Talk: 60 ± 5 seconds
Distance Pie 0.5mm 0.65mm 0.8mm
28 m 50 m 70 m
Working Temperature 0ºC ~ 40ºC (32ºF ~ 104ºF)
Dimension (mm) 276 × 185 × 33
