product detail
4 Channel Active Receiver MS-TTA414VR
Model: MS-TTA414VR
-
Built in 4 port active receivers.
-
Built in a highly balanced mode of video transmission for extra interference immunity.
-
Working with passive transmitter, distance up to 600M.over UTP cable.
-
Working with active transmitter MS-TTA111VT distance up to 1500 meters over UTP cable.
-
Easy setting with 2 adjustments for color gain and brightness.
-
System is integrated with alarm sensor (PIR, Magnetic, etc.) or data. (Pan, Tilt, Zoom).
-
Built in transient protection and ground lifting, damaging voltage spike problems are eliminated.

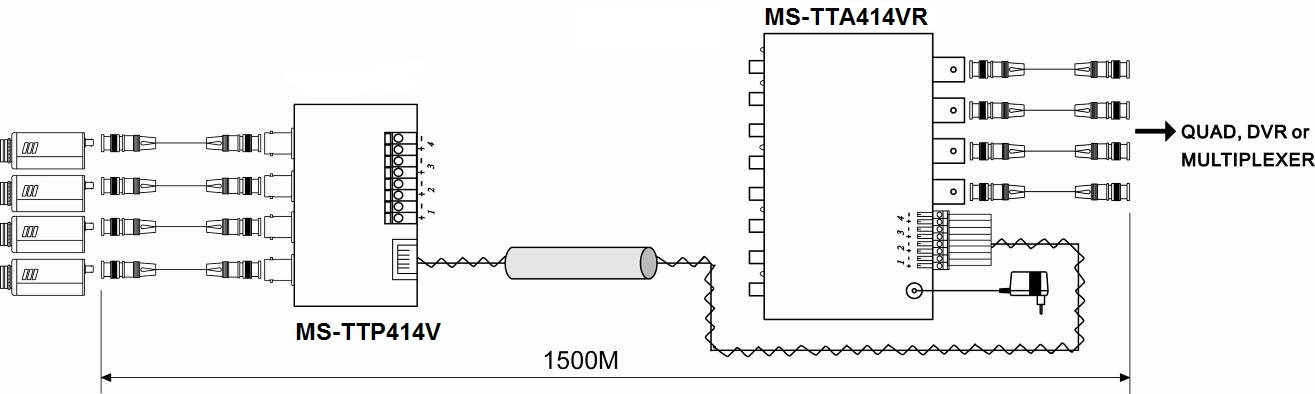

Installation View
| Item No. | MS-TTA414VR |
| Video Output | 1 Vp-p，75 Ohms (BNC Connector) |
| Power Consumption | 150mA(max) |
| Power Supply | DC 12V 500mA |
| Video Gain Adjusting | VR adjustment |
| Dimensions (mm) | 133 x 124.2 x 44 |
| Weight (g) | 580 |

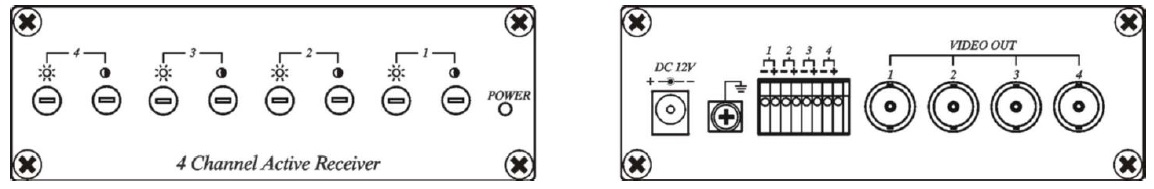

Front and Rear Panel View
