8Amp 16 Port AC24V Power Supply in 1U Rack Mounting Panel MS-PR816
Model: MS-PR816
-
16 port power supply, AC120V/230V to AC24V /8A (Max) output.
-
Each port output current 1.1Amp (Max).
-
Built in “no fuse breaker” to avoid current overload.
-
Built in PTC (positive temperature coefficient) fuse for short protection and auto rework on each port.
-
Toroidal transformer for high efficiency and low operating temperature.
-
Perfect to install in the control room. Application for larger industry CCTV installation where need numbers of camera, housing, pan tilt turning device or other surveillance equipments power sources from control room.

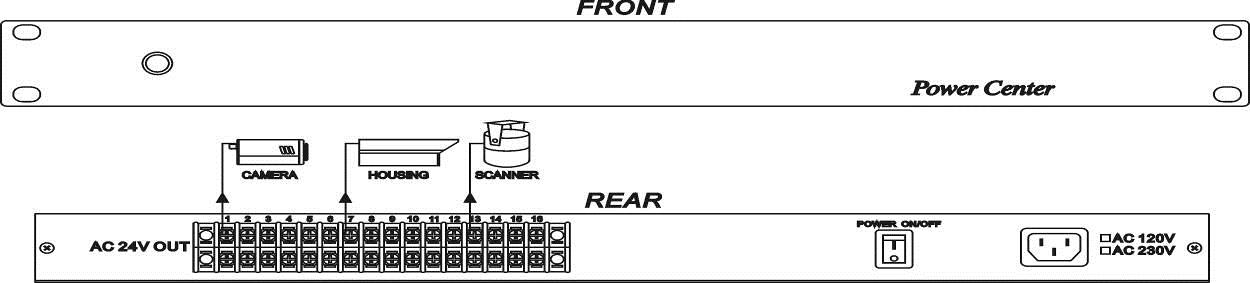

Installation View
| ITEM No. | MS-PR816 |
| Port | 16 |
| Output Voltage | AC24V |
| Output Current | 1.1A Max / Port |
| Output Trip Current | 1A / Port |
| Short Circuit Cut Time | 0.2 sec /port |
| Cut Current / Time | 2.5A/ 4Sec |
| Resetable Output | AUTO |
| Resetable Output Time | 1 Sec (Min) |
| Total Output Current | 8A (Max) |
| Dimensions (mm) | 437 × 170 × 44 1U height |
| Weight (kg) | 4 |
| Storage Temperature | -30°C ~ 70°C |
| Operation Temperature | -10°C ~ 45°C |
