8Amp 1 Port DC12V Regulated Power Supply in 1U Rack Mounting Panel MS-PR801-12R
Model: MS-PR801-12R
- 8AMP power supply in 19” standard 1U rack mounting cabinet
- 1 port power supply. AC120/230V to DC12V Regulated/ 8A (Max) output.
- Non-load output voltage DC17V
- Built in "no fuse breaker" to avoid current overload.
- Toroidal transformer for high efficiency and low operating temperature.
- Perfect to install in the control room. Application for larger industry CCTV installation where need numbers of camera, housing, pan tilt turning device or other surveillance equipments power sources from control room.

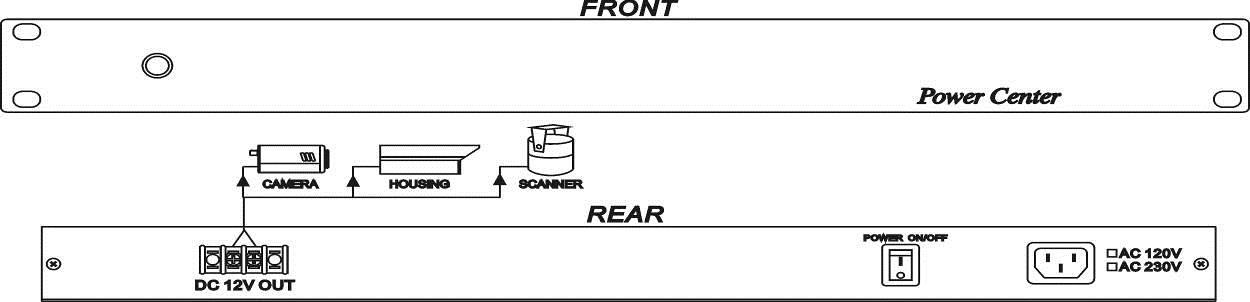

Installation View
| ITEM No. | MS-PR801-12R |
| Port | 1 |
| Output Voltage | DC12V Regulated |
| Output Current | 8A |
| Short Circuit Cut Time | 1 sec |
| Resetable Output | MENU |
| Total Output Current | 8A (Max) |
| Dimensions (mm) | 437 × 170 × 44 1U height |
| Weight (kg) | 4 |
| Storage Temperature | -30°C ~ 70°C |
| Operation Temperature |
-10°C ~ 45°C |
