1 Input 4 Output DVI Distribution Amplifier with Digital/Optical Audio MS-DD04D
Model: MS-DD04D
- Connects up to 4 DVI displays at the same time to one video source.
- Built in digital audio: coax or optical option.
- Support high resolution up to 1920 x 1200@60Hz.
- Video bandwidth up to 225Mhz.
- DVI 1.0 and HDCP compliant.

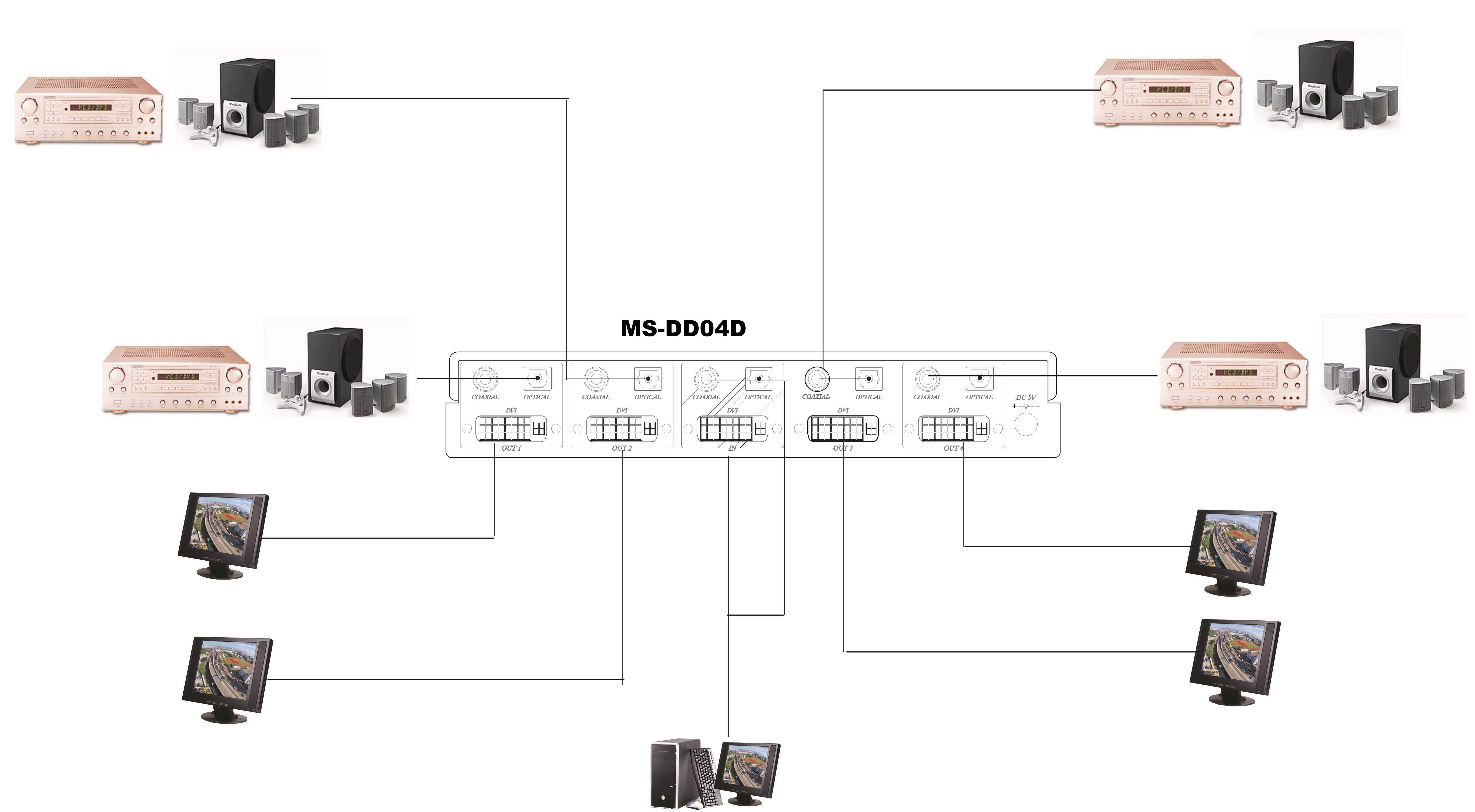

Installation View
|
ITEM NO. |
MS-DD04D |
|
Supports Bandwidth |
25MHz～225MHz |
|
Supports Resolution |
1920 x 1200 @ 60Hz |
|
DVI Input |
DVI-I x 1 (29 Pin) Digital Only |
|
DVI Output |
DVI-I x 4 (29 Pin) Digital Only |
|
Digital Audio Input |
Coaxial RCA x 1 (75Ω)，Optical x 1 |
|
Digital Audio Output |
Coaxial RCA x 4 (75Ω)，Optical x 4 |
|
Power Consumption |
700mA |
|
Power Supply |
DC 5V 1A |
|
Temperature |
Operation: -10ºC to 45ºC, Storage: -30 to 70ºC, Humidity: up to 95% |
|
Dimension (mm) |
225 x 166 x 40 |
|
Weight (g) |
910 |
