Wall Plate HDMI CAT5 Extender MS-HW01E
Model: MS-HW01E
- Extends HDMI signal over two CAT5/5e/6 cables.
- Transmission range up to 60 meters.
- Support high resolution up to 1080p.
- Built in auto EQ function, no need to do any adjustment for different range.
- Fully HDCP compliant.
- HDMI 1.3a compatible, HDCP 1.1, support DDC, EDID, CEC, Hot Plug Detect.
- Receiver unit power could be sending from PCB inside 5V terminal or external 5V DC Jack.
- Package includes: transmitter and receiver unit, one external power adapter.

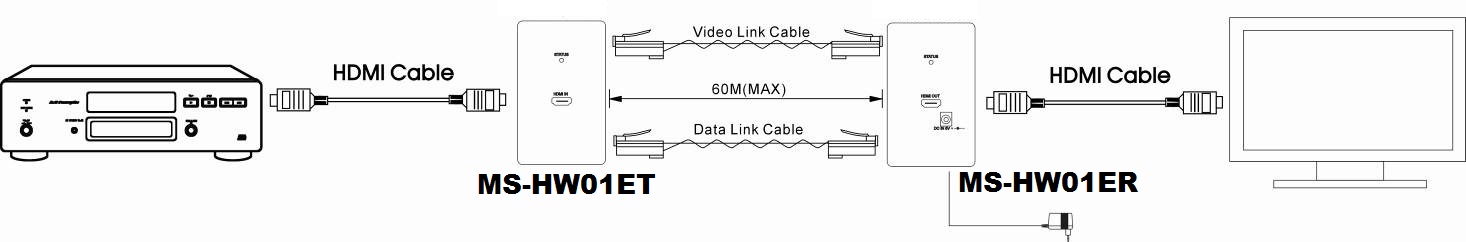

Installation View
|
Resolution |
Transmission Range (Max.) |
|
480i / 576i / 480p / 576p |
60M |
|
720p / 1080i |
60M |
|
1080p |
50M |
|
ITEM NO. |
MS-HW01ET |
MS-HW01ER |
|
Resolution |
480i / 576i / 480p / 576p / 720p / 1080i / 1080p |
|
|
Data Rate |
Max 2.25Gbps |
|
|
Link Cable Distance |
CAT5E 60M@1080i , CAT5E 50M @1080p |
|
|
HDMI Connector |
HDMI A Type x 1 (Input) |
HDMI A Type x 1 (Output) |
|
Link Connector |
RJ-45 Shielded x 2 |
|
|
Power Consumption |
X |
500mA (Max) |
|
Power Supply |
DC5V 1Amp |
|
|
Temperature |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95% |
|
|
Dimensions (mm) |
70.3 x 33 x 115 |
|
|
Weight (g) |
65 |
68 |

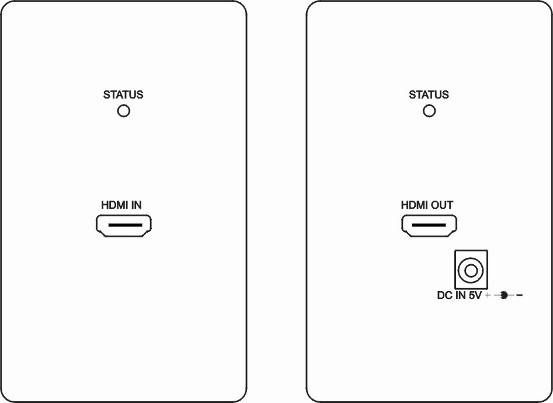

Front Panel View
MS-HW01ET MS-HW01ER
