8 Input to 16 Output Video Distribution Amplifier in 1U Rack Mounting Panel
Model: MS-CD816A

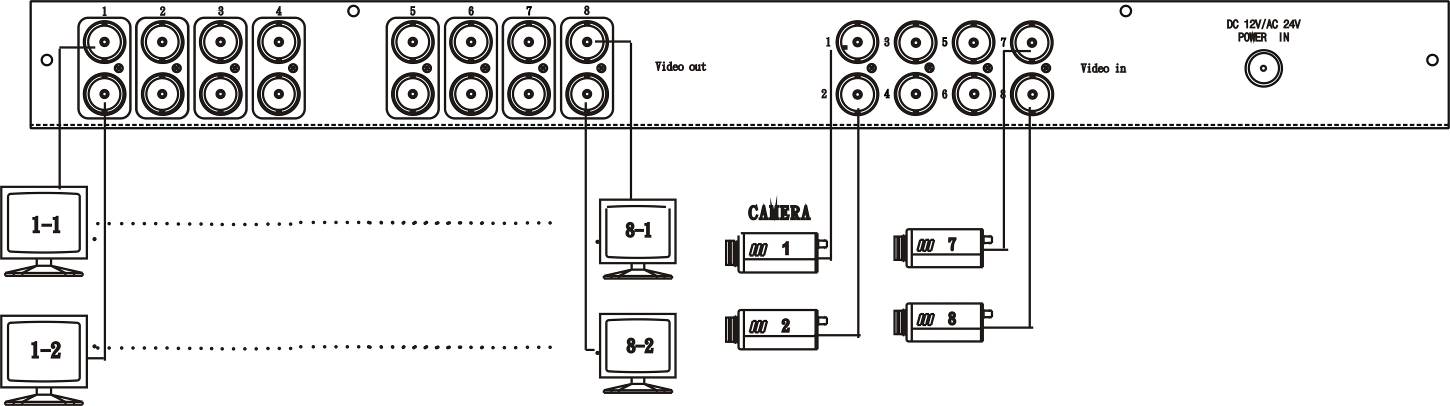

- Video distributor amplifier of 8 video input to 16 video output.
- Dual Power: DC12V / AC24V.
- 10dB video gain compensation amplification and HF compensation.
- Sharpness and brightness adjustment
- Transmission range: 1000 meters (RG59 coaxial cable).
- Red LED: power on/off.
- It can be connected video camera, multiplexer, VCR, DVR…etc.
- Power supply included
|
ITEM NO. |
MS-CD816A |
|
Video Input Channel |
BNC x 8 |
|
Video Output Channel |
BNC x 16 |
|
Video Input Level |
0.8~1.2Vp-p, 75 Ohms |
|
Video Output Level |
1Vp-p (Standard), 75 Ohms |
|
Video Bandwidth |
10hz - 10MHz |
|
Power Supply |
DC12V 500mA / AC24V |
|
Power Consumption |
250mA |
|
Temperature |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95% |
|
Dimensions (mm) |
483 x 181.2 x 44(1U) |
|
Weight (g) |
2120 |
