Active Receiver With Extra Interference Rejection MS-TTA111VH
Model: MS-TTA111VH
- MS-TTA111VH Twisted Pair Active Receiver as an amplifier.
- Using passive video transceiver MS-TTP111XX, MS-TTP414XX, MS-TTP444V, MS-TRP414VH…etc as transmitter, transmit a full motion color video signal up to 1.5Km, B/W up to 2.4Km.
- Built in Input Impedance adjustment.
- Built in Balance adjustment.
- Built in Liner Gain adjustment.
- Built in HF/MF/LF Compensation for color gain.
- Built in a highly balanced mode of video transmission for extra interference immunity.
- Built in Surge Protection.
- Red LED: As power on indicator.
- Perfect to maintain good quality picture for long-range transmission with DVR.
- Using three sets MS-TTP111XX + MS-TTA111VH for series connection, range up to 3Km (Color).
- Power supply included.

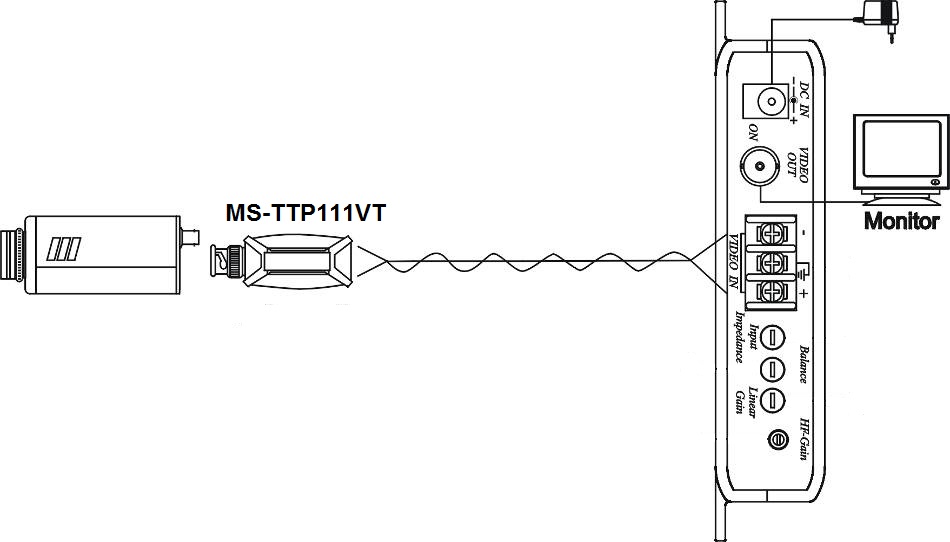

Installation View
|
ITEM NO. |
MS-TTA111VH |
|
Video input |
0.12-2 Vpp |
|
Input impedance |
45 - 175 Ohms |
|
Video output |
1 Vpp, 75 Ohms |
|
Freq. response |
50 Hz - 5 MHz(-3 dB) |
|
Disturbance reduction |
> 70 dB, 50Hz |
|
Gain adjustment |
+6 dB…+60 dB at 5 MHz |
|
Noise |
-50 dB at+40 dB gain adj. -47 dB at+60 dB gain adj. |
|
Power Supply |
DC12V, 500mA |
|
Power Consumption |
150mA (max) |
|
Input protection |
Surge arrester |
|
Temperature |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95% |
|
Dimensions (mm) |
138 x 77.3 x 28 |
|
Weight (g) |
130 |

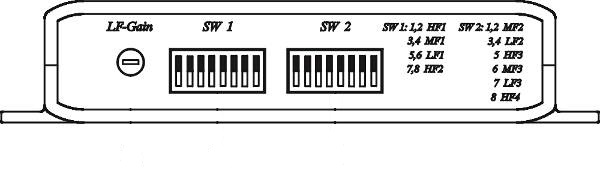

Front Panel View
