Active Video Twisted Pair Transmission MS-TTA111VA
Model: MS-TTA111VA
- MS-TTA111VA (MS-TTA111VT + MS-TTA111VHA) Auto Gain Active Transmitter + Receiver
- To send a full motion color video signal up to 2KM over UTP cable with MS-TTA111VA.
- Transmitter built in L, M, and H high frequency video gain.
- Built in two mode auto gain control at receiver.
- Built in transient protection and ground lifting, damaging voltage spike problems are eliminated.
- Perfect for high resolution TVL camera.
- Up to multi pieces MS-TTA111VT transmitter can work with auto gain 4 channel Hub MS-TTA414VRA or 1U rack mounting MS-TPA008A / MS-TPA008AH, MS-TPA016A/MS-TPA016AH auto gain receiver panel.

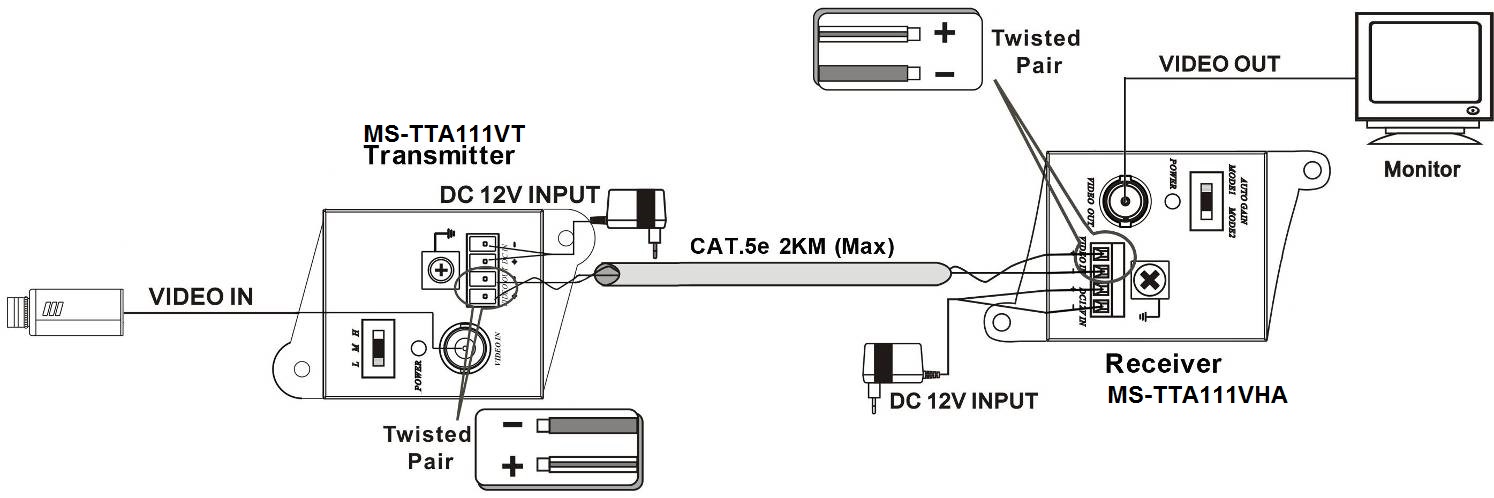

Installation View
|
ITEM NO. |
MS-TTA111VT |
|
Video Format |
NTSC / PAL |
|
Video Input |
BNC x 1 (75 Ω，1 Vp-p) |
|
Video Output |
4 pin removable terminal x 1 (100 Ω，Max 3 Vp-p) |
|
Switch |
Slide switch x 1 |
|
Power Supply |
DC 12V 500mA |
|
Power Consumption |
75 mA ( Max) |
|
Temperature |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95% |
|
Dimensions (mm) |
43.2 × 74 × 45.2 |
|
Weight (g) |
55 |

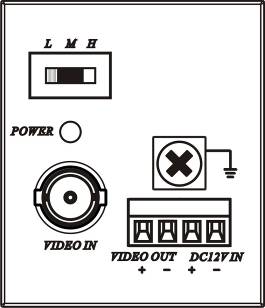

MS-TTA111VT Panel View
|
ITEM NO. |
MS-TTA111VHA |
|
Video Standard |
NTSC / PAL |
|
Video Input |
4 pin removal terminal x 1 (100Ω，1 Vp-p) |
|
Video Output |
BNC x 1 (75 Ω，1 Vp-p) |
|
Link Cable |
CAT.5 (24 AWG) |
|
Power Consumption |
100mA |
|
Power Supply |
DC 12V 500mA |
|
Temperature |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95% |
|
Dimensions |
43.2 × 74 × 45.2 |
|
Weight |
45 |
MS-TTA111VHA Panel View
