16 Port Digital Auto Gain Active Receiver MS-TPA016A
Model: MS-TPA016A
- Built in 16 port auto gain receivers in 1U 19” rack mounting panel.
- Auto gain control without any adjustment.
- Use with passive transmitter for distance up to 1.5KM.
- Use with active transmitter for distance up to 2.0KM.
- Built in transient protection.
- Built in RS485 terminal for advanced management setup and control. It could be daisy chain up to 32pcs of MS-TPA016A by any one option remote/PC/mobile phone control.
- It could be control by mobile phone with using option model RS006: RS45 to Ethernet.
- Option model: MS-RS003: USB to RS485 converter, MS-RS001: RS232 to RS485 converter, MS-RS005: RS232 to Ethernet converter, MS-IR01: IR remote control

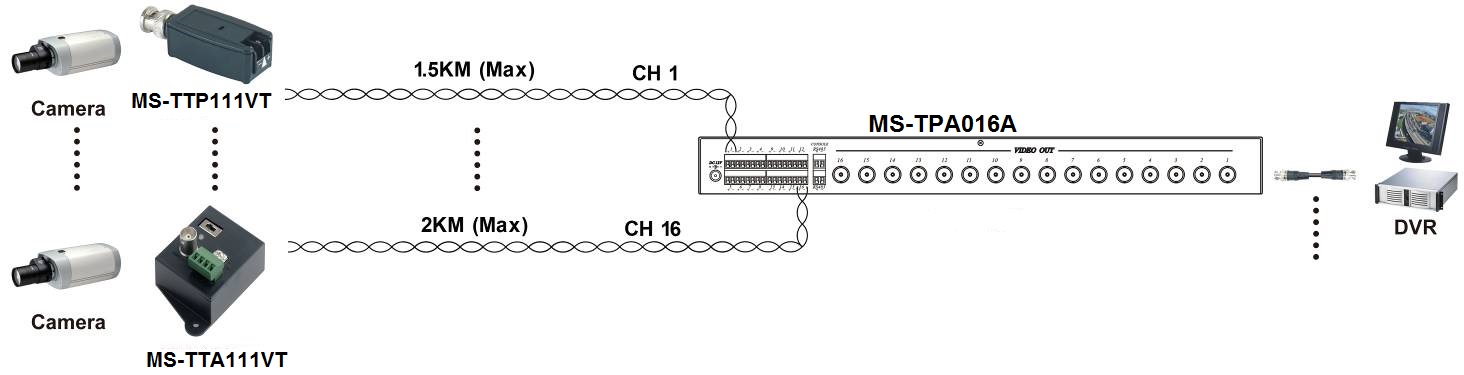

Installation View
|
ITEM NO. |
MS-TPA016A |
|
Video Format |
NTSC / PAL |
|
Video Input |
8 pin removable terminal x 4 (100 Ω，1.4 Vp-p) |
|
Video Output |
BNC x 16 (75 Ω，1 Vp-p) |
|
Management Terminal |
2 pin removable terminal x 2 (RS485) |
|
Infrared IR control Receiving |
± 55° / 5 meters |
|
Power Consumption |
750mA |
|
Power Adapter |
DC 12V 1A |
|
Dimension (mm) |
483 x 183 x 44 (1U) |

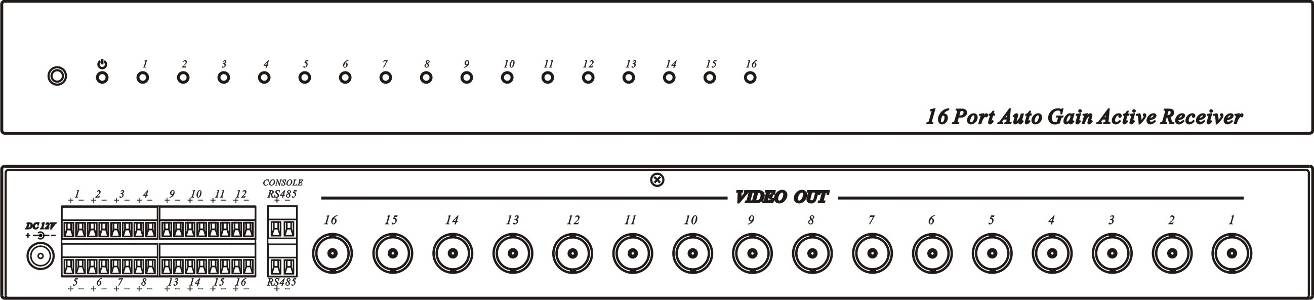

Front and Back Panel View
