product detail
Power Surge Protector MS-SP001P
Model: MS-SP001P
- 2 pin terminal for power input to 2 pin terminal for power output.
- Max power input AC 40V(MAX), DC 56V(MAX). P
- Performs a different function than grounding requirements.
- Protects equipment from high voltage surges from nearby lightning strikes.
- Two stage protection: 130V, AC/DC 12V

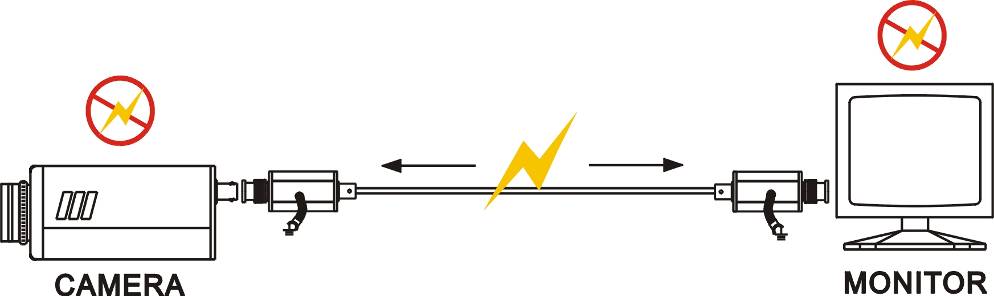

- Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR, etc.
|
ITEM NO. |
MS-SP001P |
|
Surge Protection Attack Time |
1 ns |
|
Maximum Surge Voltage |
4 KV |
|
Surge Life |
300 surges of 100Amps |
|
Normal Resistance Across Coax |
10,000 MΩ |
|
Surge Resistance |
Approx. 0Ω |
|
BAND PASS |
0~1 GHZ |
|
Power Passing Capability |
130V DC / AC, 65 Vrms at10 Amps |
|
Insertion Loss |
Less than 0.2 dB |
|
Return Loss (75 ohms) |
16dB |
|
Power IN Put |
AC 40V(MAX), DC56V(MAX) |
|
Connectors |
Terminal |
|
Dimensions (mm) |
65 x 25 x 25 |
|
Weight (g) |
65 |
