AC220-240V Power Surge Protection Device Terminal Connector MS-SP001P-AC220
Model: MS-SP001P-AC220
- Performs a different function than grounding requirements.
- Providing protection against lightning stroke for AC power loops.
- Protects equipment from high voltage surges from nearby lightning strikes.

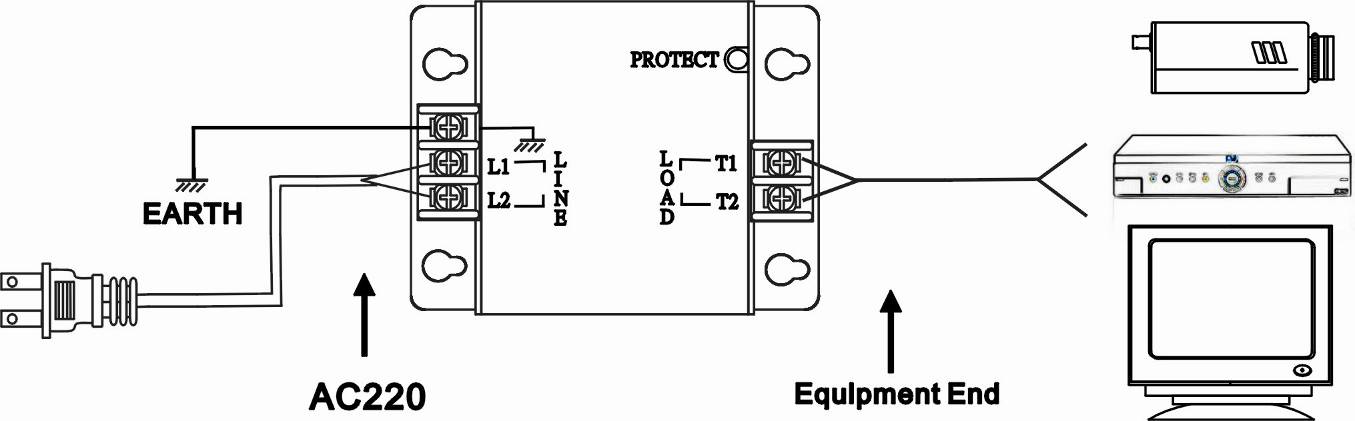

- Terminal connector to terminal connector.
- Application for protect AC220-240V
- Providing protection for equipments or instruments with power consumption below 8Amp.
- Surge current capacity: 6000A (8×20uS)
- Surge voltage capacity: 6000V (1.2uS × 50uS)
|
ITEM NO. |
MS-SP001P-AC220 |
||
|
Nominal peak voltage |
Wire |
>300V |
|
|
Wire~grounding |
>300V |
||
|
Surge Current Capacity |
6000A (8x20uS) |
||
|
Surge Voltage Capacity |
6000V (1.2uS x 50 uS) |
||
|
Response time |
<0.1uS |
||
|
Leakage current |
Wire |
<1mA (at300VAC) |
|
|
Wire~grounding |
<1mA (at300VAC) |
||
|
Max. Load Current |
4A (Max) |
||
|
Temperature |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95% |
||
|
Material |
Metal Black |
||
|
Dimensions (mm) |
67 x 87 x 28.5 |
||
|
Weight (g) |
140 |
||
