2 Input 1 Output DVI Switcher with Stereo Audio MS-DS02A
Model: MS-DS02A
- Switch easily between any two DVI sources.
- Built-in Stereo Audio
- Extends the range of DVI compliant device by equalizing and reclocking the DVI signal
- Pre-emphasized outputs.
- Supports high resolution input:
- PC: VGA, SVGA, XGA, SXGA, UXGA, WUXGA (1920 x 1200)
- HDTV: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p @60Hz.
- Supports 250 Mbps to 1.65 Gbps data rates
- Supports 25 MHz to 165 MHz pixel clocks
- HDMI pass-through
- HDCP pass-through
- IR remote control included.

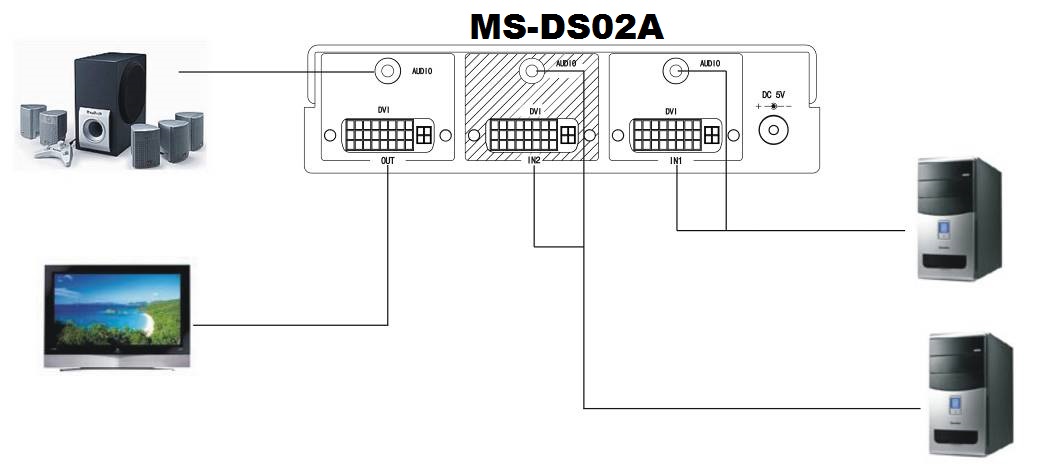

Installation View
|
ITEM NO. |
MS-DS02A |
||
|
DVI Input |
2 |
||
|
DVI Output |
1 |
||
|
Stereo Audio Input |
2 |
||
|
Stereo Audio Output |
1 |
||
|
Frequency Bandwidth |
1.65 Ghz |
||
|
Supports Resolution |
480i, 576i, 480p, 720p, 1080i, 1080p |
||
|
Operation Temperature |
-10ºC ~ 45ºC |
||
|
Storage Temperature |
-30ºC ~ 70ºC |
||
|
Power Consumption |
300mA |
||
|
Power Supply |
DC5V 1AMP included |
||
|
Dimensions (mm) |
145 × 96 × 37 |
||
