RS232 CAT5 Extender MS-RE01 (MS-RS002E)
Model: MS-RE01 (MS-RS002E)
- Extends any RS232 compliant devices up to 2000 meters at 115200bps.
- One CAT5/5E cable.
- Easy plug and play installation.
- Full-duplex data communication
- Speed up to 115,200 bps.
- Complete transmission of all pin RS-232C signals.
- Transmission Signal: DCD, RX, TX, DTR, DSR, RTS, CTS, RI.
- External power supply included.

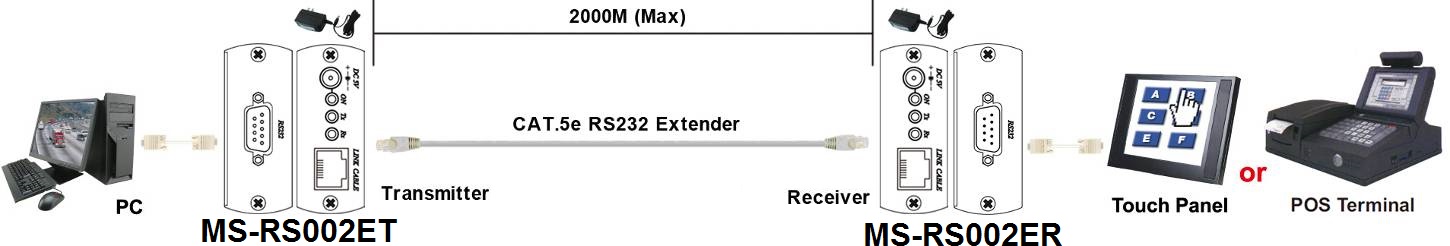

Installation View
|
ITEM NO. |
MS-RE01T |
MS-RE01R |
|
Data Baud Rate |
300 bps ~ 115200 bps |
|
|
Input/Output Interface (RS232) |
DB9 x 1 (Female) |
DB9 x 1 (Male) |
|
DB9 Pin Out |
Pin 1 – Carrier Detect |
|
|
Link interface |
RJ45 x 1 |
|
|
Transmission Range (Max.) |
2 KM |
|
|
Power Consumption |
200mA ~ 250mA |
|
|
Power Supply |
DC 5V 1A |
|
|
Temperature |
Operation: 0 ~ 55℃, Storage: -20 ~ 85℃, Humidity: up to 95% |
|
|
Dimensions (mm) |
67 × 74.5 × 27 |
|
|
Weight (g) |
130 |
|

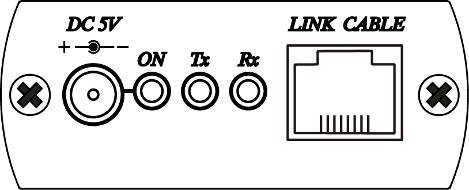

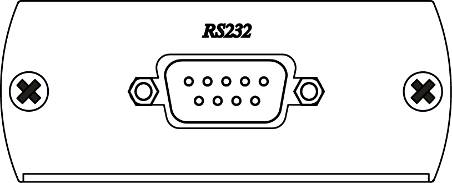

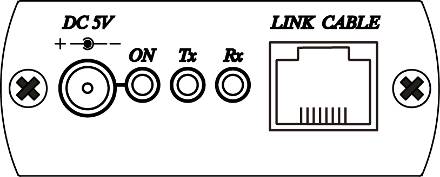

Panel View
MS-RS002ET
MS-RS002ER
