RS485 Data Repeater MS-RS001R
Model: MS-RS001R
- Data signal repeater from RS485 to RS485 up to 1200 meters.
- Plug in screw terminal block for easy wiring.
- Power input from DC jack.
- Auto detected Baud rate maximum up to 115.2 Kbps.
- Red Led: Power/RX
- Built in 2.5KV isolation protection.
- Surge protection.

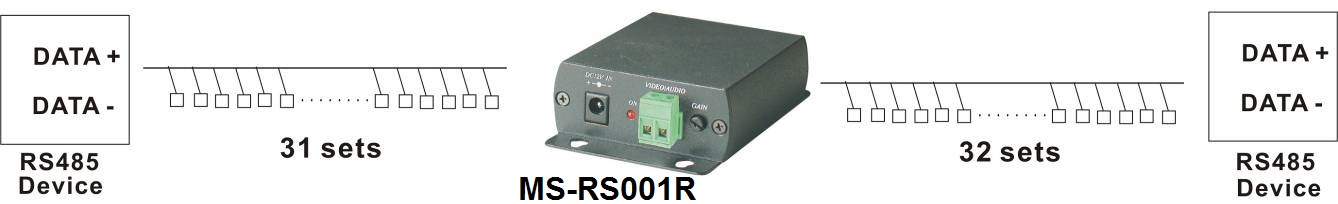

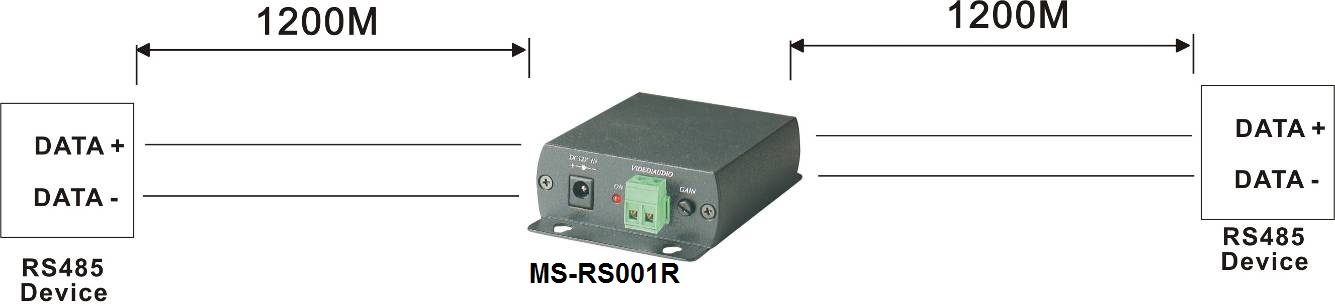

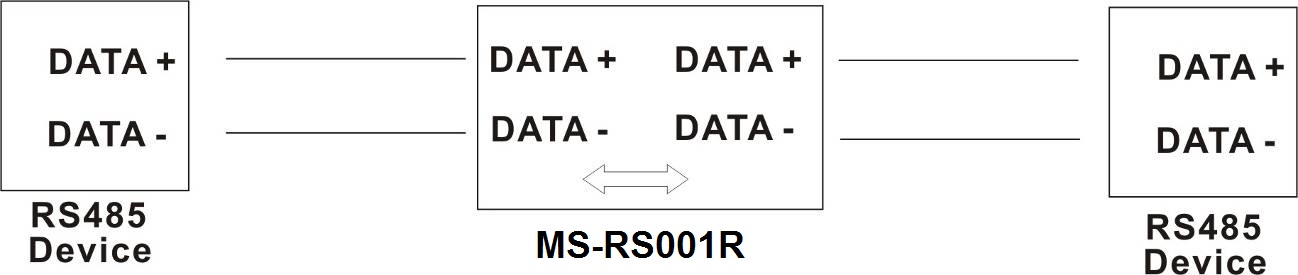

Installation View
|
ITEM NO. |
MS-RS001R |
|
DATA Input |
RS485 (Terminal Block) |
|
DC Input Voltage |
+10 ～20V |
|
Power Supply |
DC12V 500mA |
|
Max. Power Consumption |
100mA |
|
Temperature |
Operation: 0 to 55°C, Storage: -20 TO 85°C, Humidity: up to 95% |
|
Material |
Metal Black |
|
Dimension (mm) |
67 × 87 × 27 |
|
Weight (g) |
130 |

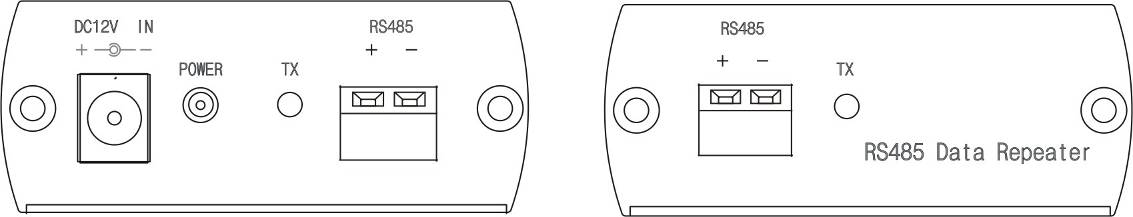

Front and Back Panel View
