USB to RS232 (Serial) Converter MS-RS232U
Model: MS-RS232U

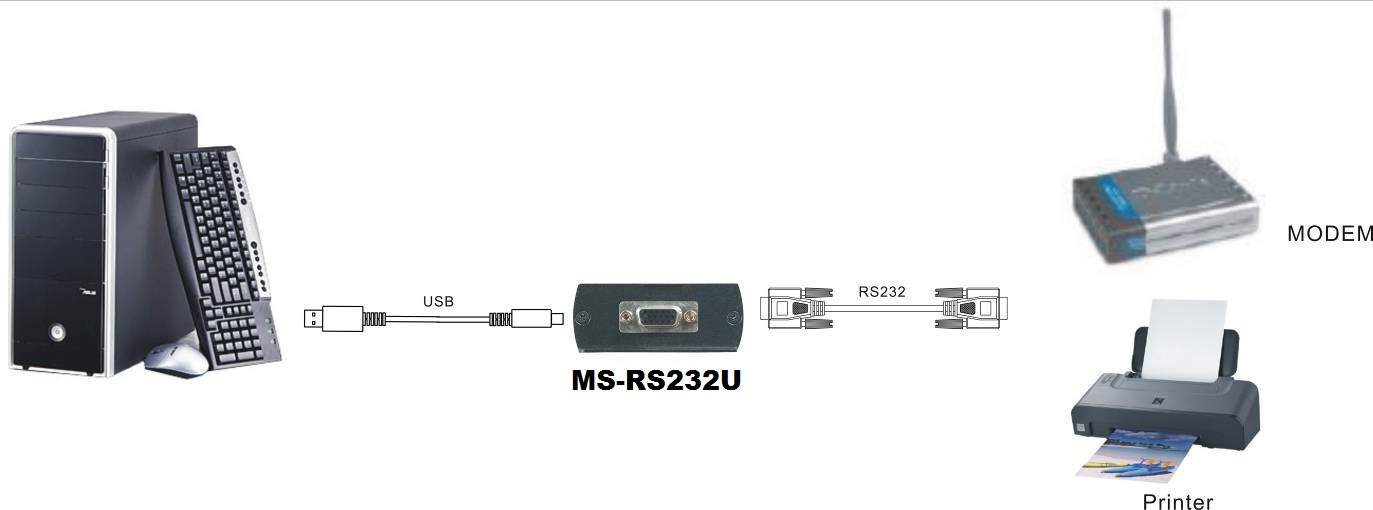

The MS-RS232U USB converter provides a reliable connection between the computer and serial peripherals for easy plug and play solution. The serial RS-232 ports connect and support serial modems, barcode scanners, digital cameras, card readers and other devices. The unit is powered from the USB connection, so no external power supply is necessary.
Features:
- USB to RS232 DB9 serial interface converter.
- Non power operation.
- Support RS232 transfer rate up to 921.6Kbps.
- USB 2.0 Compliant.
- Powered by PC.
- Connect/Disconnect Without Reboot.
- Windows 98, ME, 2000, XP & 2003 , VISTA Compatible.
- MAC OS 8.6 to 9.2 Compatible.
|
ITEM NO. |
MS-RS232U |
|
Input |
USB 1.0/ 1.1/ 2.0. Full speed 12 Mbps |
|
Output |
RS232 Interface: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
|
Max. Power Consumption |
10mA from the USB connector |
|
Connector |
USB type B to DB9 pin male |
|
Power |
X |
|
Temperature |
Operation: 0~55°C, Storage: -20~85°C, Humidity: up to 95% |
|
Dimensions (mm) |
67 × 70 × 27 |
|
Weight (g) |
105 |
