1 In 11 Out Component & Stereo/Digital Audio CAT5 Extender Distribution Amplifier in 1U Rack Mounting Panel MS-YE10DAL
Model: MS-YE10DAL
- Extends Component Video and stereo/digital audio over one UTP CAT5 cable.
- Supports high resolution up to 1080p.
- Long range transmission up to 300 meters (Max.)
- Dual output: 1 Component Video loop output for local, plus 10 x CAT5 RJ45 output for remote side.
- Built in one loop out allows cascading connection multi units for larger display system.
- Audio by digital encoding process for sound undistorted.
- Digital audio support coax and optical input, auto selection.
- CAT5 receiver option model: MS-YE02DALR, MS-YE02DALS

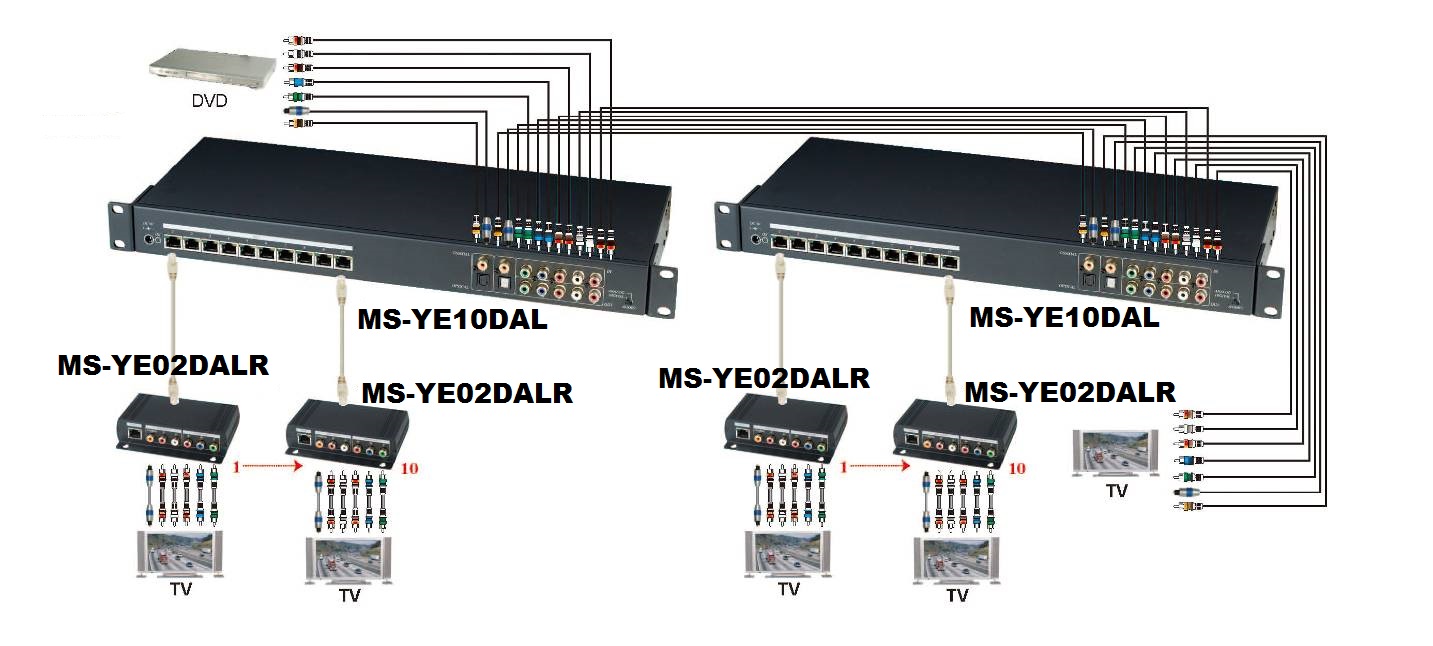

Installation View
|
ITEM |
MS-YE10DAL |
|
|
Resolution |
480i, 480p, 720p, 1080i, 1080p |
|
|
Video Bandwidth |
Loop Out 500MHz (-3dB) / Cat.5e Out 350Mhz (-3dB) |
|
|
Video Input / Output |
Y (75Ω, 1.0 Vp-p), Pb Pr (75Ω, 0.7 Vp-p) |
|
|
Video Connector |
RCA x 6 |
|
|
Audio Bandwidth |
20-20Khz (-3dB) |
|
|
Audio Input / Output |
10KΩ 3Vp-p (Max), 75Ω SPDIF |
|
|
Audio Connector |
RCA x 4 |
COAXIAL: RCA x2 / OPTICAL x 1 |
|
Power Supply |
5V DC 2000mA |
|
|
Power Consumption |
1500mA (Max) |
|
|
Dimensions |
483 x 177 x 44 (1U) |
|
|
Peso (g) |
2000 |
|

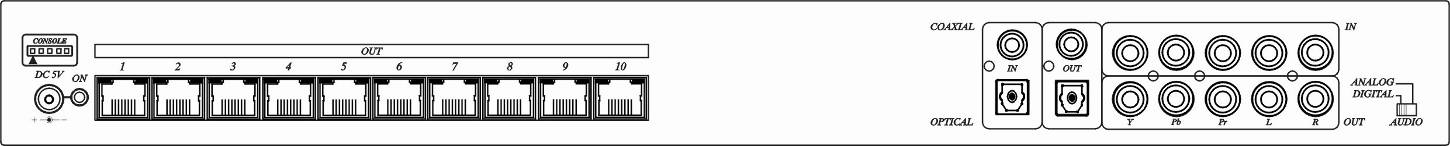

Panel View
