1 in 2 Out Component Video & Stereo/Digital Audio CAT5 Extender - Chainable Function MS-YE02DAL
Model: MS-YE02DAL
- Extends Component Video and Stereo Audio, Digital audio over one UTP CAT5 cable.
- Each set including one piece MS-YE02DALT transmitter and one piece MS-YE02DALR receiver.
- Support analog stereo audio and digital audio.
- Digital transmission on analog stereo audio for sound undistorted (Dolby Digital, AC3, DTS passed through).
- Supports hi resolution up to 1080p.
- Long range transmission up to 300 meters (Max).
- Dual output: 1 Component Video loop output for local, plus 1 x CAT5 RJ45 output for remote side.
- Built in equalization, gain adjustment, chainable CAT5 output at remote unit.
- Remote unit could be daisy chained to another MS-YE02DALR receiver to extended working range over 300 meters and multiple displays.
- Application for airports, train & bus stations, window display, trades shows, exhibitions.
Installation View
|
ITEM NO. |
MS-YE02DALT |
|
Resolution |
Up to 1080p |
|
Video Bandwidth |
Local 750MHz-3dB / Remote 350MHz-3dB |
|
Video Input / Output |
RCA x 6: Y (75Ω，1.0 Vp-p)，Pb Pr (75Ω，0.7 Vp-p) |
|
Audio Input / Output |
Analog audio L-R stereo audio RCA x 1( 3Vp-p Max.10KΩ) |
|
Audio Bandwidth |
20-20KHz -3dB |
|
Audio Connector |
stereo audio RCA x 1 + optical coax |
|
Analog Audio Input / Output |
RCA x 4 (10KΩ), 3 Vp-p (Max) |
|
Digital Audio Input / Output |
RCA x 4 (10KΩ)，3 Vp-p (Max) + Coaxial RCA x 2 (75Ω) |
|
Link Connector |
RJ45 x 1 |
|
Max Distance |
Up to 300M (1000 feet) |
|
Power Supply |
5V DC 2000mA |
|
Power Consumption |
400mA (Max) |
|
Dimensions (mm) |
125 x 95 x 30 |
|
Weight (g) |
280 |
Panel View

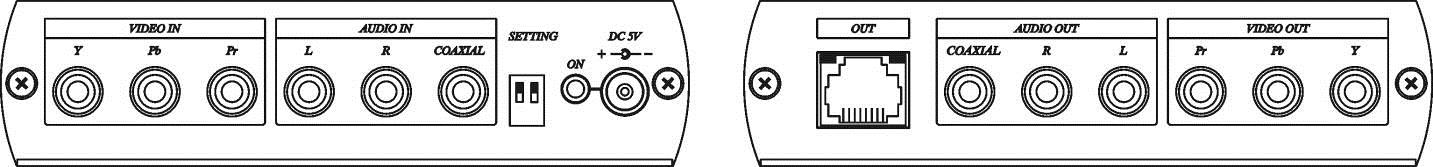

MS-YE02DALT
|
ITEM NO. |
MS-YE02DALR |
|
Resolution |
Up to 1080p |
|
Video Bandwidth |
150Mhz-3dB |
|
Video Output |
RCA x 3: Y (75Ω, 1.0 Vp-p), Pb Pr (75Ω, 0.7 Vp-p) |
|
Analog Audio Output |
RCA x 2 (10KΩ), 3 Vp-p (Max) |
|
Digital Audio Output |
Coaxial RCA x 1 (75Ω)，Optical x 1 |
|
Link Connector |
RJ45 x 1 |
|
Loop output Connector |
RJ45 x 1 |
|
Max Distance |
Up to 300M (1000 feet) |
|
Power Supply |
5V DC 2000mA |
|
Power Consumption |
800mA (Max) |
|
Dimensions (mm) |
125 x 95 x 30 |
|
Weight (g) |
265 |
Panel View
MS-YE02DALR
