5 Channel CAT5 VGA/Component & Audio Output Rack Card MS-RT01
Model: MS-RT01
- 19” rack card with 5 Channel CAT5 output as a CAT5 transmitter, to extend VGA/Component Video & audio over one CAT5 cable.
- Remote monitoring side using CAT5 receiver box, such a MS-VE02ALR, MS-VE02DALS.
- VGA resolution support up to 1600 x 1200@85Hz.
- Component video support Full HD 1080p.
- Long range transmission up to 300 meters (Max.)
- 4 input signal option with LED indication.
- Automatic scan each channel.
- Allow up to 14 pieces MS-RT01 CAT5 transmitter card at MS-RB01, to send multi distribution up to 70 remote monitors.

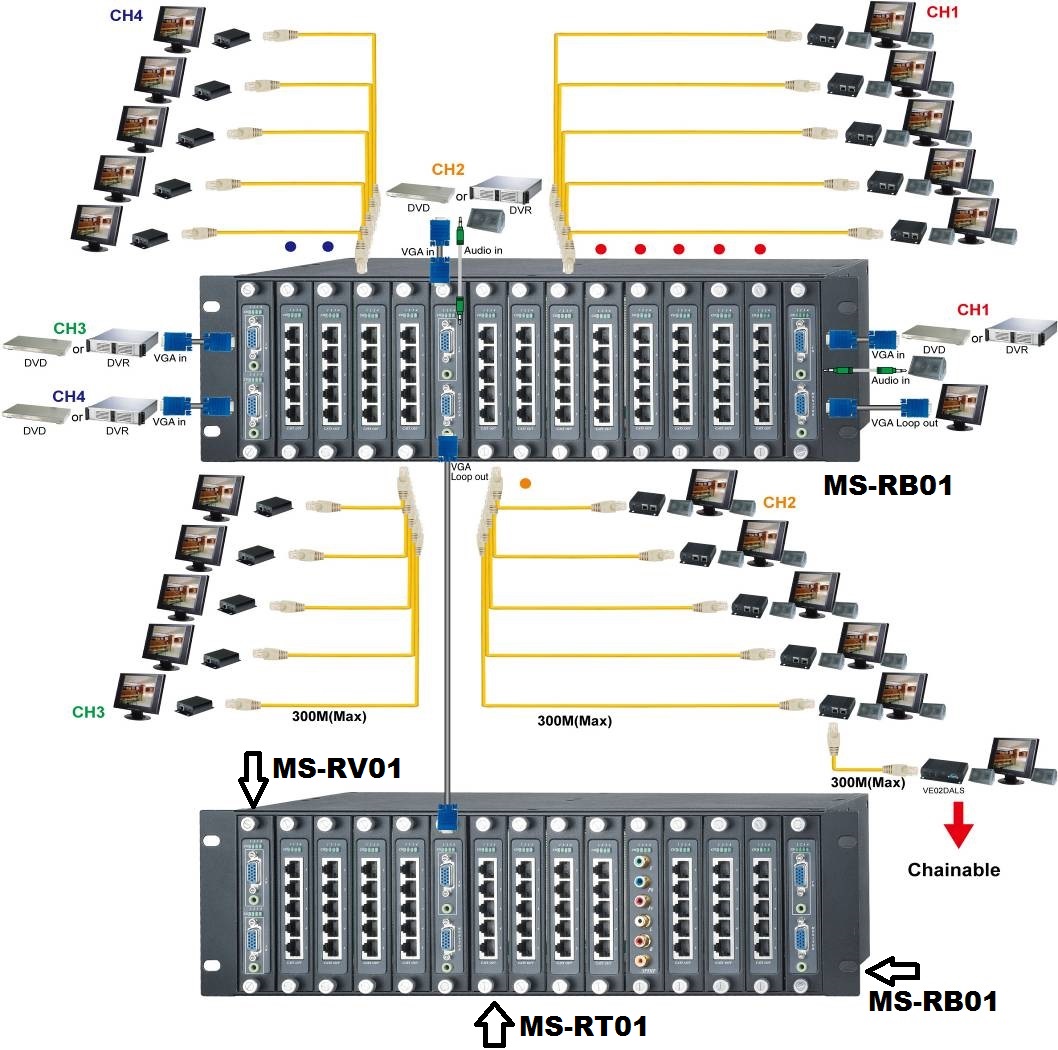

Installation View
|
ITEM NO. |
MS-RT01 |
|
Video Resolution (Max) |
VGA 1600x1200 @85Hz, YUV 1080p |
|
Video Bandwidth |
350MHz -3dB |
|
Audio Support |
SPDIF |
|
Power Consumption |
400mA |
|
Dimensions (mm) |
125× 125 ×27.5 |
|
Weight (g) |
120 |
