Active High Resolution VGA CAT5 Extender with Stereo Audio MS-VE01HA

Model: MS-VE01HA

  • Active type, including transmitter and receiver with stereo audio function.
  • Supports high resolution up to 1920 x 1200 at 70 meters.
  • Use 4 pairs CAT5 UTP cable.
  • External power required at transmitter unit, no power requested at receiver unit.
  • Audio by digital encoding process for sound undistored.
Installation View
ITEM MS-VE01HAT MS-VE01HAR
VGA Connector DB15 × 1 (RGB Analog · 0.7 Vp-p 75Ω
Audio Connector Stereo Phone Jack 3.5mm × 1 (2Vp-p Max ·10KΩ)
Video Bandwidth 700 MHz, -3dB
Audio Bandwidth 20 ~ 20K Hz, -3dB
Data Link RJ45 × 1
DC Jack Ø2.0 mm × 1 X
Power Supply DC 12V · 500mA X
Power Consumption 400 mA (Max) X
Temperature Operation: 0 to 55ºC, Storage: -20 to 85ºC, Humidity: up to 95%
Dimensions (mm) 67 × 87 × 27
Weight (g) 140

Front and Back Panel View

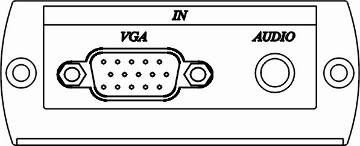

MS-VE01HAT

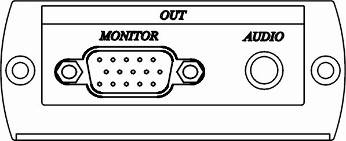

MS-VE01HAR
