Wall Plate VGA CAT5 Extender MS-VW01
Model: MS-VW01
-
Used in pairs via one CAT5 UTP cable to send VGA up to 100 meters.
-
Passive device, no power required.
-
Supports up to 1280x1024 pixels.
-
Wall mountable type for a neat and cleaner installation.
-
Wall plate outer dimension: 115 x 71 mm.
-
Does not support VGA DDC protocol
-
Transmitter built in virtual DDC to avoid improperly setting at resolution and frequency.
-
Transmitter built in sync mode selection for signal stability.
-
Receiver built in sync filter level adjustment for signal stability.
-
Perfect for classrooms, lecture halls, tradeshows, video information displays…etc.
| Maximum Transmission Distance via CAT5 Cable | |
| 800 × 600 pixels (30 MHz) | 100 meters / 328 feet |
| 1024 × 768 pixels (60 MHz) | 75 meters / 246 feet |
| 1280 × 1024 pixels (100 MHz) | 60 meters / 196 feet |

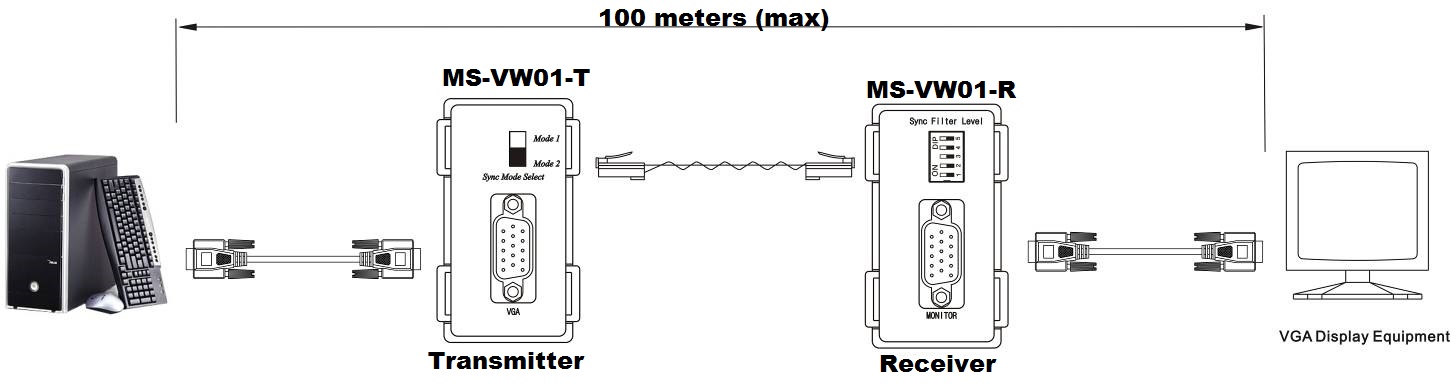

Installation View
| ITEM No. | MS-VW01T | MS-VW01R |
| Input Signals | Video: 1 Vp-p | |
| Horizontal & Vertical Sync: TTL standard. 300 kHz max bandwidth | ||
| Insertion Loss | Less than 3dB per pair over the frequency range | |
| Video Signal Return Loss | -15dB max from DC to 60Mhz | |
| 75 ohms (DB15), 100 ohms (RJ45) | ||
| Setting Switch | 2 Stage Slide Switch | 5 Stage Dip Switch |
| Transmission Distance | 60 -100 meters depend on image resolution | |
| Link Cable | CAT5 / CAT5e / CAT6 / STP or UTP Cable | |
| Temperature | Operation: 0 to 55ºC, Storage: -20 to 85ºC, Humidity: up to 95% | |
| Dimensions ( mm) | 70.3 x 61 x 115 | 70.3 x 61 x 115 |
| Weight (g) | 97 |
95 |

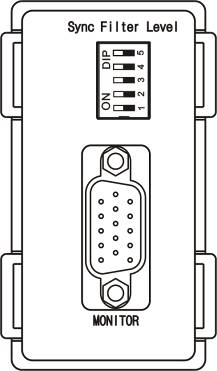

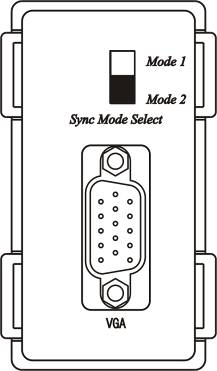

Front Panel View
Receiver Transmitter
