HD Video Passive Balun - Set of Transmitter and Receiver

Model: HDPB0101

MXT HD CCTV Passive Video Balun
Set of transmitter and receiver balun

The HDPB0101 video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective un-shielded twisted paired (UTP) cable.  This balun is compatible with all HD-TVI, AHD, HD-CVI and CVBS analog cameras.


Features:
  • Passive, no power required
  • Compatible with HD-TVI, AHD, HD-CVI, CVBS analog cameras
  • Mini-coax pigtail allows quick mounting and flexible connection

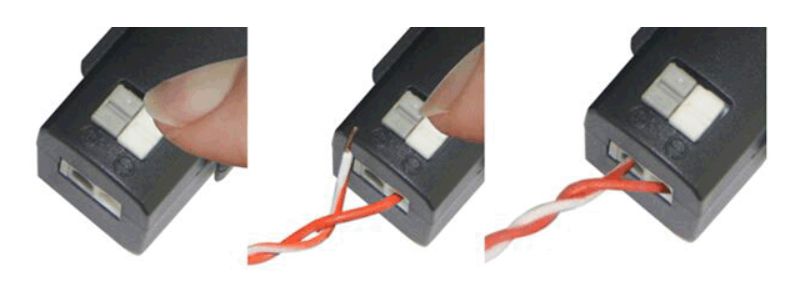

  • Push-pin terminal block allows connection of UTP cable output without tools.
  • Built-in surge suppressor to protect video equipment against damaging voltage spikes.
  • Crosstalk and noise immunity ensure quality video signal
  • Superior interference rejection and low emissions allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits

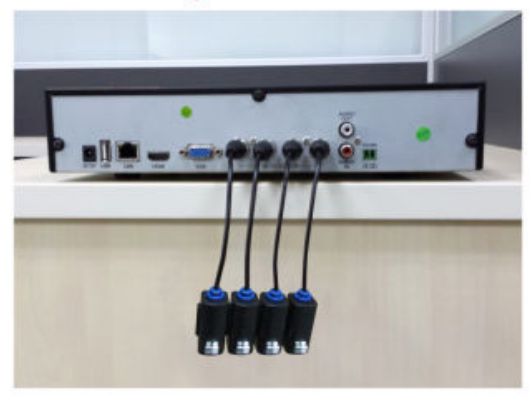

  • Connectable design for neat installation

Wire and Cable Recommendations
  • The HDPB0101 is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG.
  • Individually shielded pairs should be avoided, as they reduce the operating range of systems drastically.
  • Multi-pair (25-pair or more) with an overall shield are acceptable.
  • Video signals can coexist in the same wire bundle as telephone, datacom, or low-voltages power circuits.
  • While video may be routed through telephone punch-down block terminals, any bridge-taps, also called T-taps and any resistive, capacitive or inductive devices MUST BE removed from the pair.

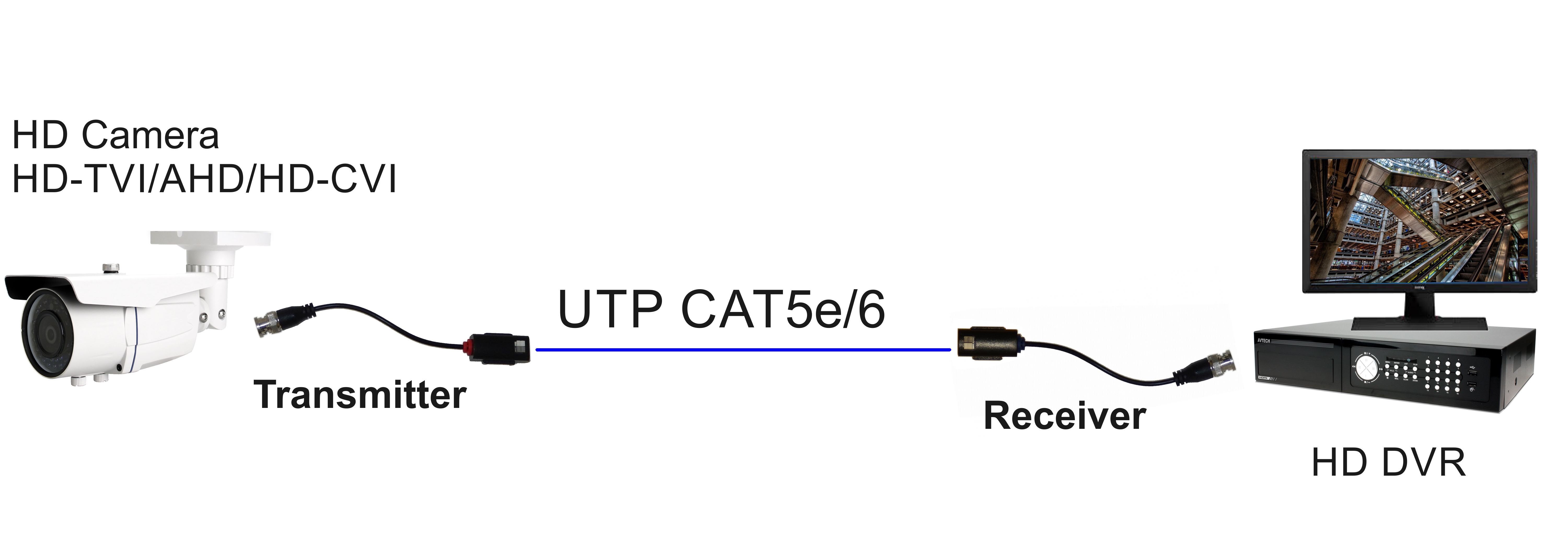

Application Diagram





Product

Single Channel HD Passive Video Balun

Power

Passive, no external power required

VIDEO

Video Format

HD-TVI/ HD-CVI/ AHD/ CVBS

Maximum Transmission Distance

HD-TVI 720p: 190 meters / 623 feet

HD-TVI 1080p: 190 meters / 623 feet

HD-TVI 3MP: 190 meters / 623 feet

HD-TVI 5MP: 180 meters/ 590 feet



HD-CVI 720p: 440 meters/ 1443 feet

HD-CVI 1080p: 230 meters/ 754 feet

HD-CVI 4MP: 230 meters/ 754 feet



AHD 720p: 320 meters/ 1049 feet

AHD 960p: 320 meters/ 1049 feet

AHD 1080p: 250 meters/ 820 feet

AHD 3MP: 180 meters/ 590 feet

AHD 4MP: 200 meters/ 656 feet

AHD 5MP: 200 meters/ 656 feet



CVBS: 400 meters/ 1312 feet

Operating Frequency

DC to 42MHz

Common-mode/ Differential-mode rejection

15KHz to 42MHz 60dB typ

Impedance

Coax: Male BNC, 75Ω unbalanced

UTP: push-pin terminal block, 100Ω balanced

Attenuation

1.5dB typ Max

WIRE TYPE

Networking Wiring

One unshielded twisted pair (for each video signal) 24-16 AWG (0.5-1.31 mm)

Category Type

UTP CAT 5E/6

Impedance

100 ± 20Ω

DC Loop Resistance

52Ω per 1000 ft (18Ω per 100m)

Differential Capacitance

19pF/ft max (62 pF/m max)

CONNECTOR



Video Input/Output

Male BNC connector

Video Input/Output

Tool-less push-pin terminal block

PROTECTION

Surge Protection

Renewable solid stage surge protection

Video Input

2KV (common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)

Video Output

2KV (common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)

MECHANICAL

Housing

ABS engineering plastic

Body Color

Black

Dimensions (LxWxH)

38.4 x 18.6 x 19.5 mm (BNC connector and cable excluded)

Net Weight

22g

Environmental



Operating Temperature

-20°C ~ 70°C

Relative Humidity

0 ~ 95% (non-condensing)


Note:
1. The actual transmission distance will vary according to the specific camera, DVR, and on-site environment.
2. Please make sure to install transmitter at camera side and receiver at DVR side to achieve the best video quality.
3. The baluns are not waterproof and not to be used at outdoors.
