Video & Power over One Coax Cable 800 meters MS-CA101VP

Model: MS-CA101VP

  • To send video and camera power over one coaxial cable.
  • Transmission distance up to 800M (Max.)
  • Support power input:  AC 18-35V, DC 24-56V
  • Support camera power up to DC12V 1Amp.
  • MS-CA101VP power adapter optional model:  DC24V, DC48V, DC56V

               DC24V 1.25Amp  power adapter: SWP241250
               DC48V 0.83Amp  power adapter: SWP480830
               DC56V 1.26Amp  power adapter: SWP551260



ITEM NO

MS-CA101VPT

MS-CA101VPR

Power Input/output

DC JACK 2.0 mm

Video&Power Input/output

BNC

Input/Output Voltage

DC 12V 1Amp Output

AC 18V~35V, DC24V~56V Input

Distance (Max.)

800M

Power Consumption(Max.)

50mW

Temperature

Operation: 0 to 70℃, Storage: -20 to 85℃, Humidity: up to 95%

Dimensions (mm)

49.2 x 112.5 x 25.2

Weight (g)

150 g

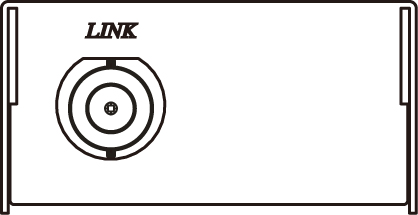

Panel View

MS-CA101VPR Receiver Unit



MS-CA101VPT Transmitter Unit
