Wall Plate Video, Audio, Power CAT5 Extender MS-CW01AP

Model: MS-CW01AP

  • Send video, audio and power over one CAT5 UTP cable.
  • Wall mountable type for a neat and cleaner installation.
  • 2 x RCA female for video and audio, 1 x DC jack for power.
  • Passive, No power required.
  • Transmission range up to 300 meters.
  • Perfect for integrated home security and entertainment application.

ITEM NO.

MS-CW01AP

Video Input  (RCA female)

1V p-p, 75 Ohms

Audio Input / Output

2V p-p, 10k Ohms

Bandwidth

Video: DC~ 5Mhz, Audio: 50Hz ~ 15Khz

Transmission Distance

300 Meters

Cable

Twisted Pair CAT5,CAT5e (AWG24)

Power Input/Output

DC Jack x 1

Dimensions (mm)

70.3 x 61 x 115

Weight (g)

98

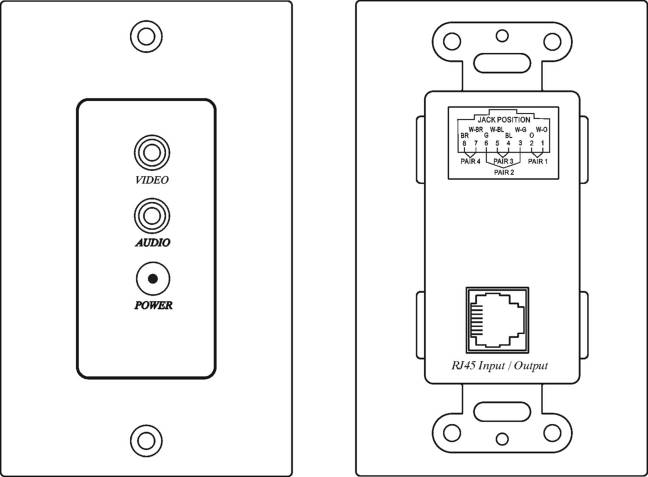

Front and Rear Panel View
